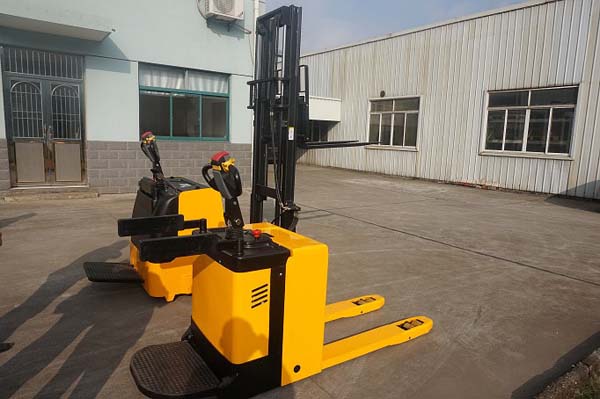

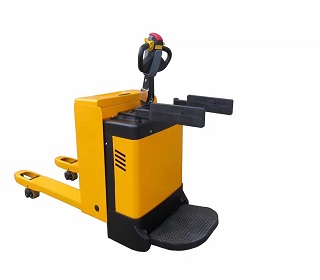

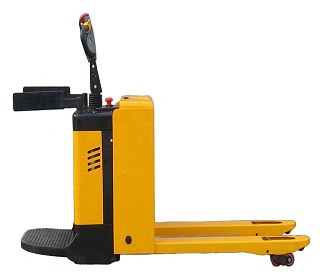

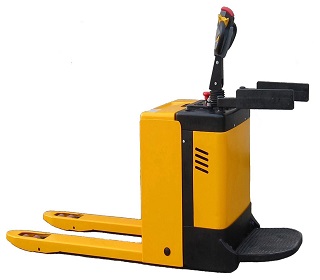

Name:CBE2.0E/CBE2.5E Full Electric Pallet Truck
Model:CBE2.0E/CBE2.5E
Product Introduction:1.Heavy-duty design,electric powered steering(EPS).CURTIS controller,MAHLE hydraulic motor. 2.Vertical driving wheel unit has excellent power.Electromagnetic brake.Wheel replacement simple. 3.Balance wheels load bearing structure greatly improve the stability of traveling and steering. 4.An oil cylinder acts on driving wheel to increase traction force along with the increasing of the load. 5.Fork lift is functioned by the structure of rail-roller which greatly improve the strength and reliability. 6.Battery charger displays charging status visually.Driving motor AC and DC optional.

Features:

1.Heavy-duty design,electric powered steering(EPS).CURTIS controller,MAHLE hydraulic motor.

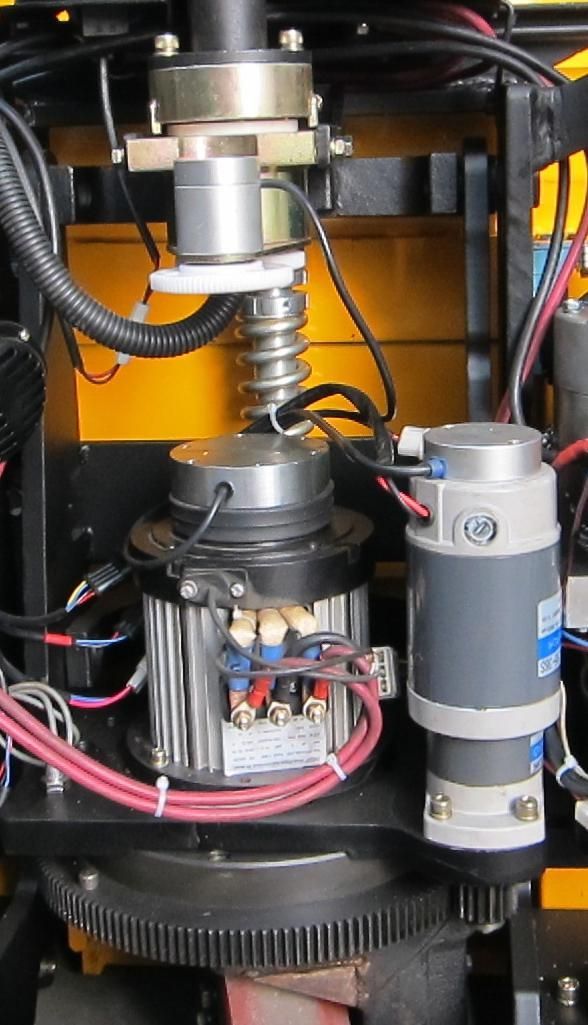

2.Vertical driving wheel unit has excellent power.Electromagnetic brake.Wheel replacement simple.

3.Balance wheels load bearing structure greatly improve the stability of traveling and steering.

4.An oil cylinder acts on  driving wheel to increase traction force along with the increasing of the load.

5.Fork lift is functioned by the structure of rail-roller which greatly improve the strength and reliability.

6.Battery charger displays charging status visually.Driving  motor  AC  and DC optional.

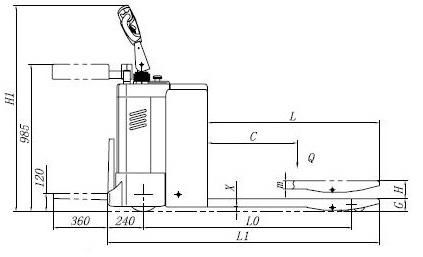

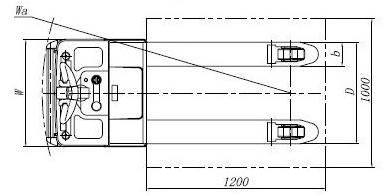

Model CBE2.0E/2.5E Balance wheel size mm φ125×75
Power type Battery Min. steering radius      Wa mm 1670
Driving style Standing pedal Channel width for turn mm ≥2100
Load capacity                Q kg 2000/2500 Min. fork height              G mm 85
Load center                    C mm 600 Max. fork stroke              H mm ≥120
Overall length                L1 mm 1820 Travel speed(laden/unladen) mm 4.5/5.5
Overall width                W mm 720 Gradeability loaded % 8
Overall height               H1 mm 1380 Brake type Electromagnetic
Fork dimension     L×b×m mm 1150×160×55 Power of driving motor kw 1.5
Outside width of forks   D mm 540/680 Power of lift motor kw 2.2
Ground clearance            x mm 30 Power of steering motor kw 0.165
Base distance                L0 mm 1400 Battery capacity/voltage Ah/V 210/24
Wheel material PU Weight of battery kg 180
Driving wheel size mm φ230×80 Net weightno battery kg 485
Front wheel size mm φ80×70
