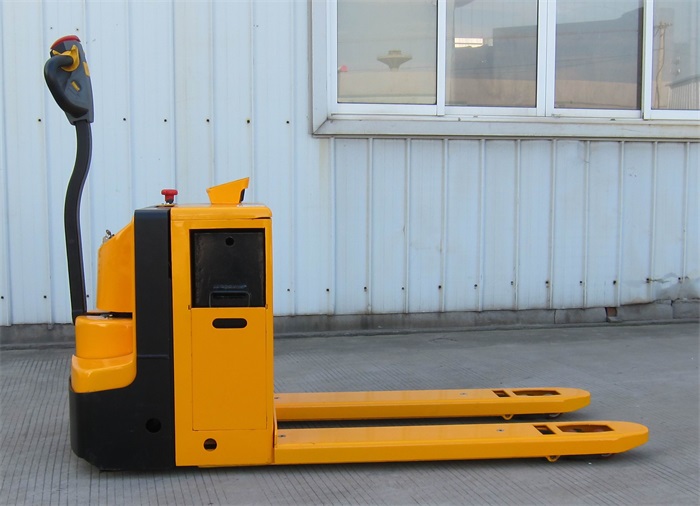

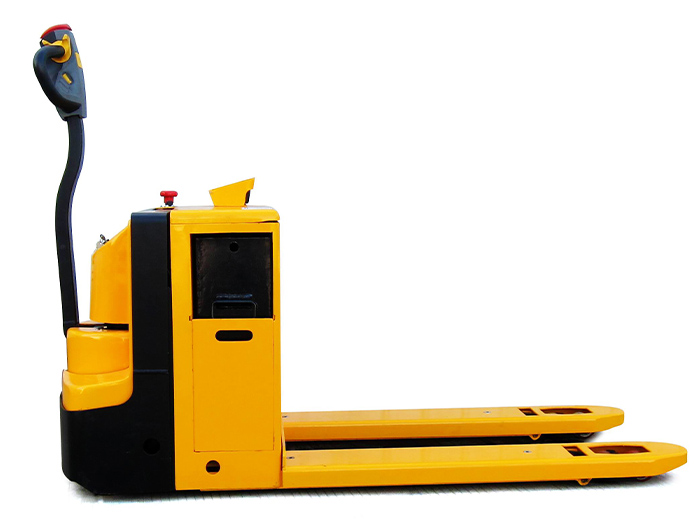

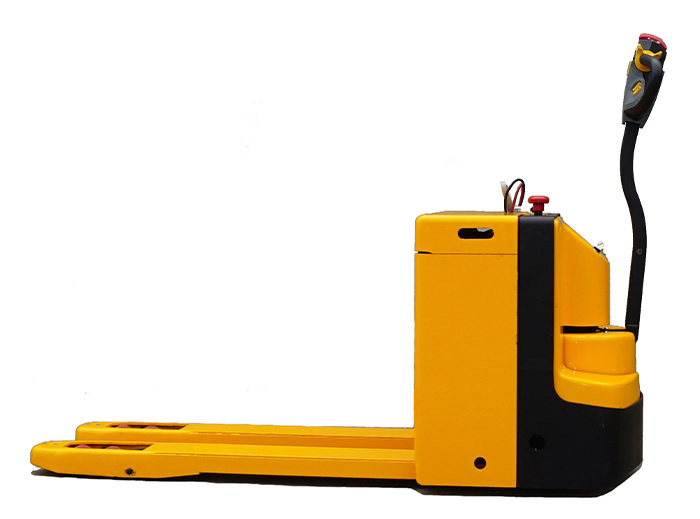

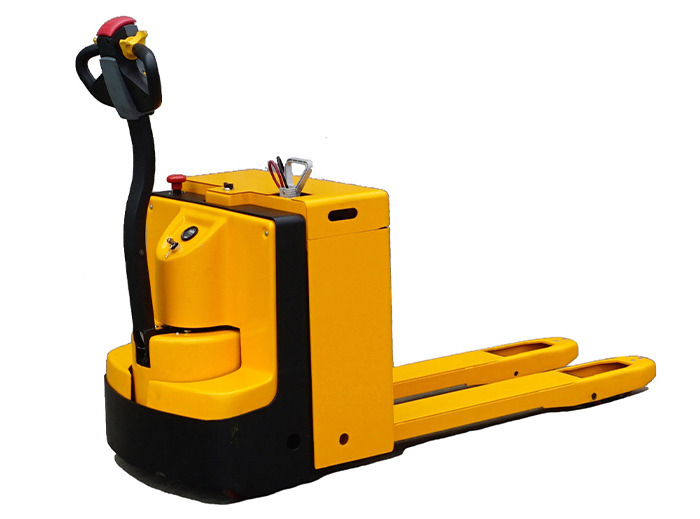

Name:CBE2.0S Full Electric Pallet Truck
Model:CBE2.0S
Product Introduction:1.Hydraulic pump station makes the lifting of goods steady and powerful 2.Drive wheel installed with reliable dish style braking has strong power and steady capability 3.Electric control system reacts quickly and operates easily 4.It has flexible linear heavy-duty design and tight structure, and it is suitable for narrow access and is flexible operated 5.It is accorded to European standard of EN1757-1: 2001

1.     loading on balancing wheels ,together with floating mechanism of driving unite ensures stability and no tipping.

2.     Curtis control system has the function of multiple protections for overvoltage, overcurrent, low voltage, high     temperature,and short circuit .

3.     emergency reverse button on control handle prevents any accidental injury to operator.

4.     electromagnetic brake prevents the truck from sliding on a ramp.

5.     strong handrails and large non-slip standing pedal ensure operation more safe.

6.     turning velocity reducing function is optional, it ensures the truck more stable in a sharp turning operation.

7.      in case of an emergency, press red emergency switch to cut off the power immediately to ensure safety.

Model

CBE2.0S

CBE2.0SL

Model

CBE2.0S AC

CBE2.0SL AC

Type

without platform

Capacity

(kg)

2000

Load Center

C (mm)

600

Max. Fork Height

H (mm)

205

Min. Fork Height

h (mm)

85

Fork Length

L1 (mm)

1150

Individual Fork Width

b (mm)

160

Wheel Base

y (mm)

1406

Turning Radius

Wa (mm)

1608

Traveling Speed With/Without Load

(Km/h)

3.6/5.4

Lifting Speed With/Without Load

(mm/s)

22/32

Lowering Speed With/Without Load

(mm/s)

50/55

Drive Wheel

1200W, Ф250mm (DC)

Drive Wheel

1200W, Ф250mm (AC)

Power Unit (lifting motor)

(W/V)

800/24

Traction Battery

24V/210Ah, 185kg

Battery Charger

25A/24V

Overall Dimension

L×W×H (mm)

1781×690×1305

Fork Overall Width

B (mm)

530

680

Net Weight

(kg)

324

329
