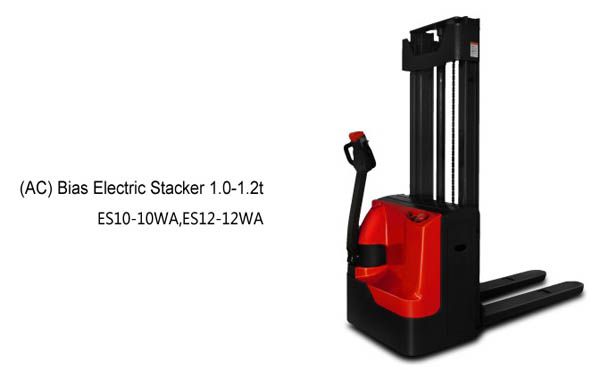

Name:ES10-10WA ES12-12WA Bias Electric Stacker
Model:ES10-10WA ES12-12WA
Product Introduction:ES10-10WA ES12-12WA Bias Electric Stacker

1.The innovative AC system offers quick response, accurate control, impact structure, excellent performance, longer battery service life.
2.The innovative AC motor provides stronger power to keep high speed with full load. 8% gradeability, provides increased power to climb docks and floor joints without lurching or stalling.
3. World-class hydraulic power pack, with low noise, few vibration and excellent leak tightness, automatically adjusts the rate of decline whether loaded or unloaded, and ensures smooth lifting.
4.The latest AC controller, high reliability, with regenerated braking, anti-roll back and adjustable settings, ensures the best performance in the different states.
5.High-accuracy mast roller and side inner roller, ensures smoothly lifting.
6.The maximum distance design between caster and driving wheel, increases the stability of the stacker.
7.American AMP connectors with top quality, prevents moisture and contaminants from interrupting truck operation in all environments, plus all the wires and cables reliably protected and fixed, greatly reduces the electrical error.









Model



ES10-10WA

ES12-12WA

 Loading Capacity

kg

1000

1200

 Weight,with standard battery

kg

850

850

 Lifting Height

mm

3000

3000

 Fork lowered height

mm

85

85

 Overall Length

mm

800

800

 Aisle width for pallets 1000*1200 crossways

mm

2370

2370

 Aisle width for pallets800*1200 lengthways

mm

2303

2303

 Turning radius

mm

1463

1463

 Travel speed loading/without loading

km/h

5.5/6.0

5.5/6.0

 Gradeabilityloading/without loading

%

8/16

8/16

 Voltage/Amp hours,recommended

V/Ah

24/210

24/210
