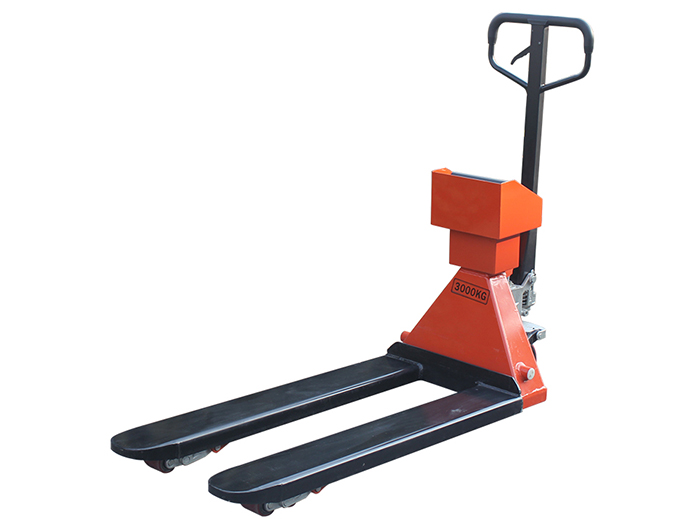

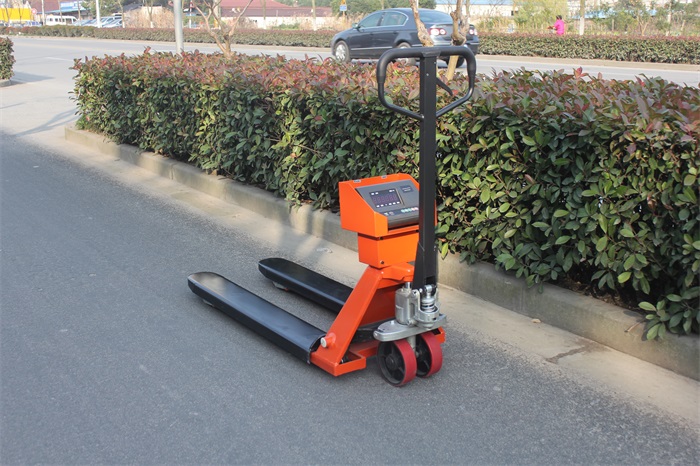

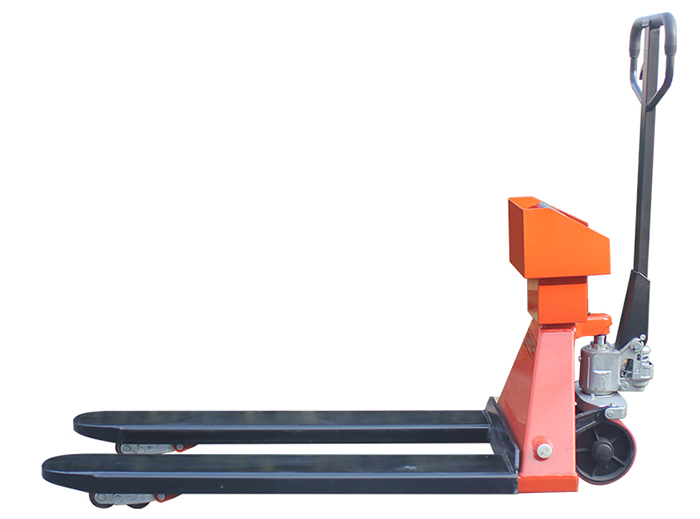

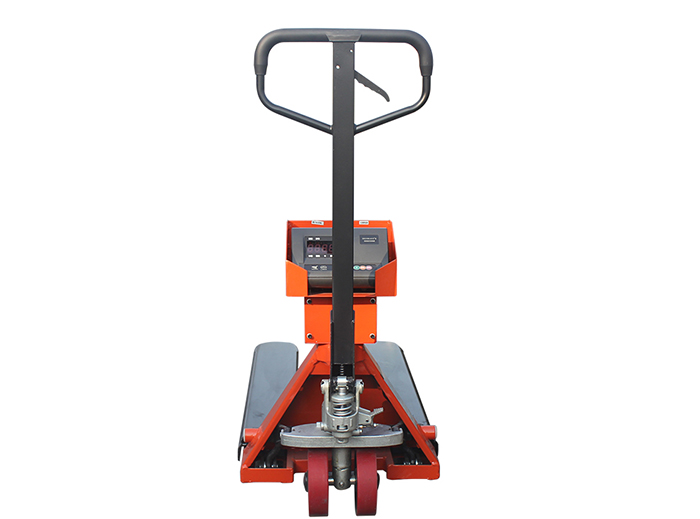

TLD Scale Hand Pallet Truck

SINOLIFT MATERIAL HANDLING EQUIPMENT CORP.

Add：No. 2471-2477 Dachuan Road, Nanhui Industry park, Pudong new District, Shanghai, P.R.China 201314.

Tel：021-68014500 58003681

Fax：021-68014262

Email：sales@sinolift.com

Website：www.sinolift.com

Contact Person：Mr. David deng

Mobile：0086-13817572420

Skype：sinolift

Name：TLD Scale Hand Pallet Truck
Model：TLD
Product Introduction：The weight platform is composed of hydraulic manual handling mechanism and weighing components. The surface is treated with dust-cleaning and plastic spraying, with features of anti-corrosion and rust prevention. High strength steel cargo fork structure, safe and reliable; High precision and stable performance. Applicable to the weighing of goods in the logistics operation of factories, railways, highways, commerce and trade, industry and mining.

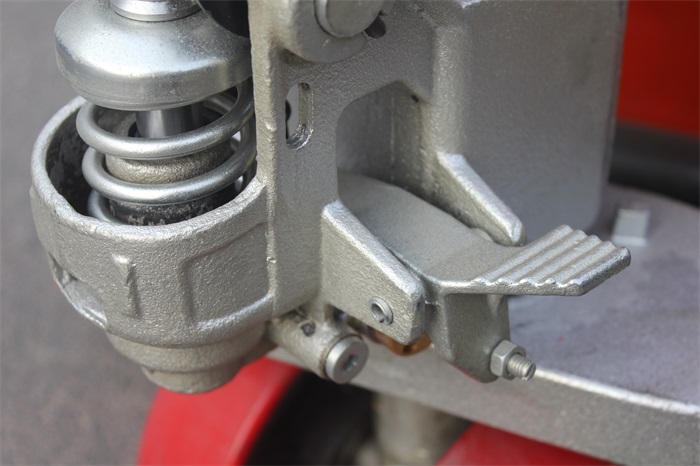

The balance platform consists of a hydraulic manual handling mechanism and a weighing element.

The surface is treated with dust-removing spray, which has the features of anti-corrosion and anti-rust.

The stallion structure of high strength iron and steel is safe and reliable.

The results show that the balance is of high precision and stable performance.

Suitable for weighing goods in factories, railways, roads, trade, mining and other logistics operations.

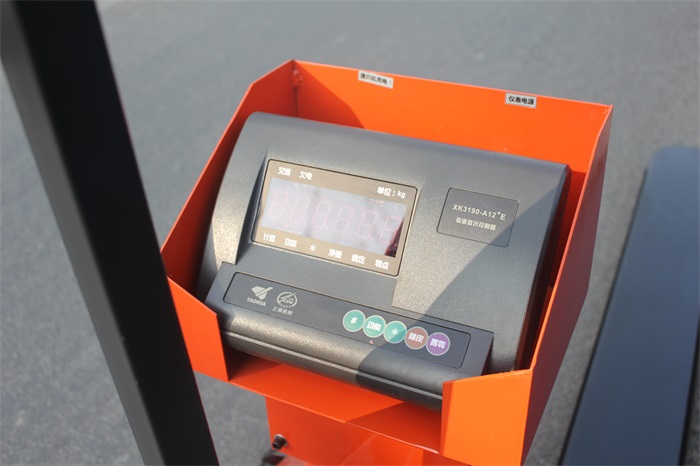

Model	TLD XK3190-A6	TLD(Casting) XK3190-A12+E
Load capacity	2500kg	2500kg
Net weight	110kg	110kg
Min. fork height	80mm	80mm
Max. fork height	195mm	195mm
Fork length	1150/1220mm	1150/1220mm
Overall Width	540/680mm	550/685mm
Fork width	160mm	160mm
Fork inner width	220/360mm	230/365mm
Big wheel diameter	ø180*50mm	ø180*50mm
Small wheel diameter	ø70*70mm	ø70*70mm
Power supply	Build in rechargeable battery	dry battery
Min. measuring unit	0.5kg	0.5kg
Weighing precision	±1%	±1%
