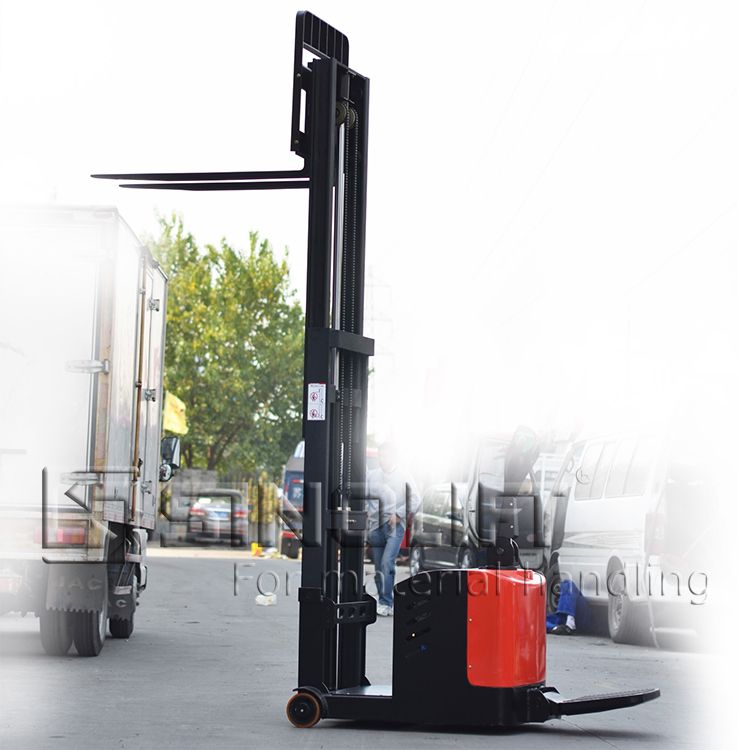

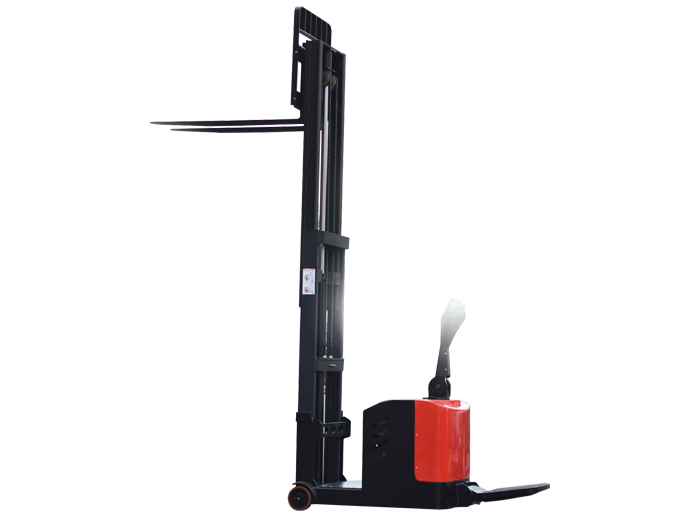

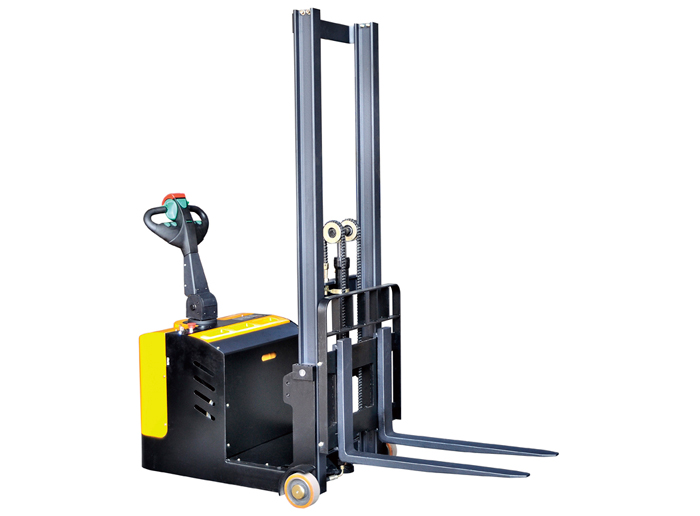

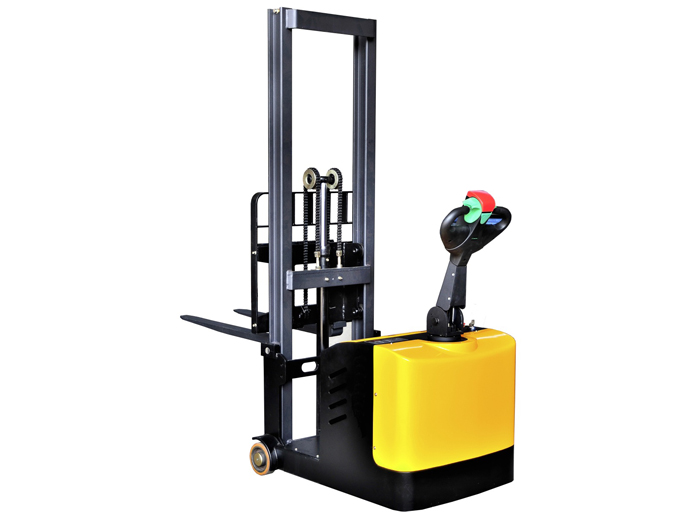

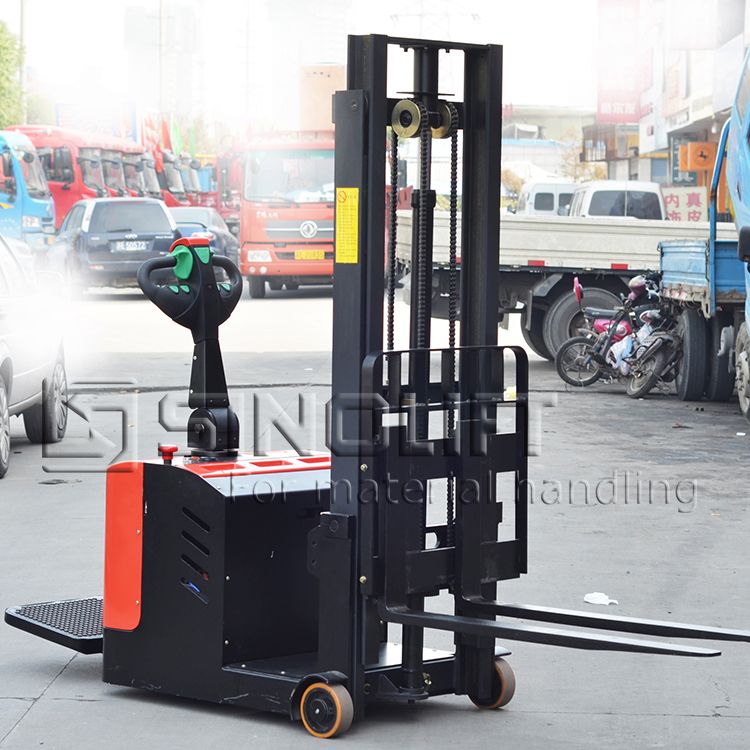

Name:CPD-SCE Series Counterweight Stacker
Model:CPD1600-SCE/CPD2500-SCE/CPD3000-SCE
Product Introduction:1.Price is so low that procurement cost is greatly reduced. 2.Labor-saving:less labor required because of high transport efficiency. 3.Operation simplified: less and high returns can be achieved by this Counter-Balance Stacker. NO more sweating.

1.Price is so low that procurement cost is greatly reduced.
2.Labor-saving:less labor required because of high transport efficiency.
3.Operation simplified: less and high returns can be achieved by this Counter-Balance Stacker. NO more sweating.
Model CPD1600-SCE CPD2500-SCE CPD3000-SCE
Operate type Walkie Walkie Walkie
Capacity kg 500 500 500
Load center mm 400 400 400
Lifting height mm 70~1600 70~2500 70~3000
Fork Size mm 800 800 800
Turing radius mm 1150 1150 1150
Overall fork width mm 160~650 160~650 160~650
Travel speed km/h 2.5/3.0 2.5/3.0 2.5/3.0
lift speed mm/s 145/80 145/80 145/80
Driving motor kw 1.6 1.6 1.6
Lifting motor kw 2.2 2.2 2.2
Battery V/Ah 12/80x2 12/80x2 12/80x2
