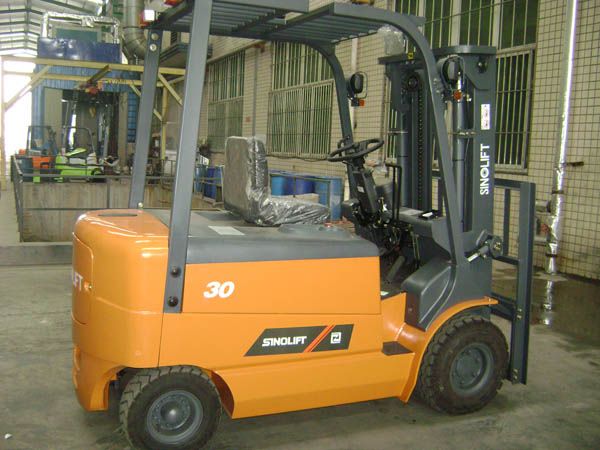

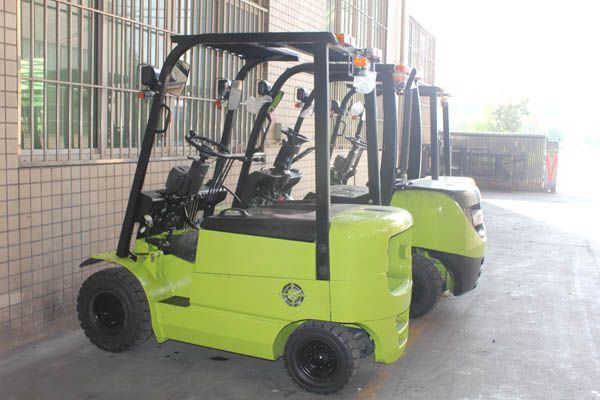

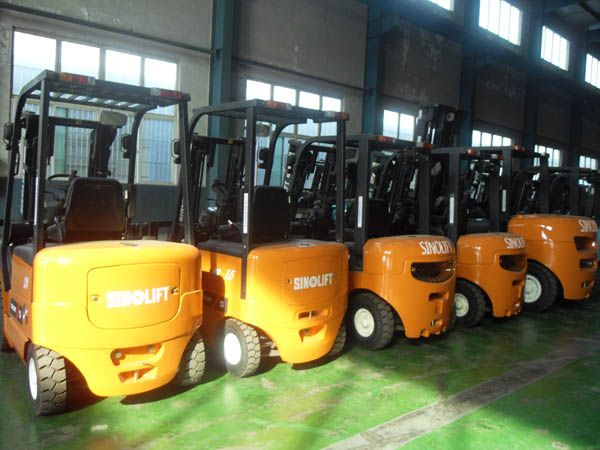

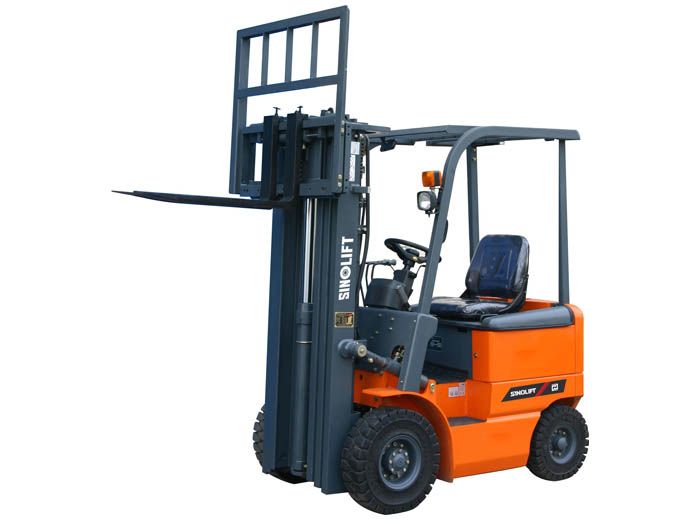

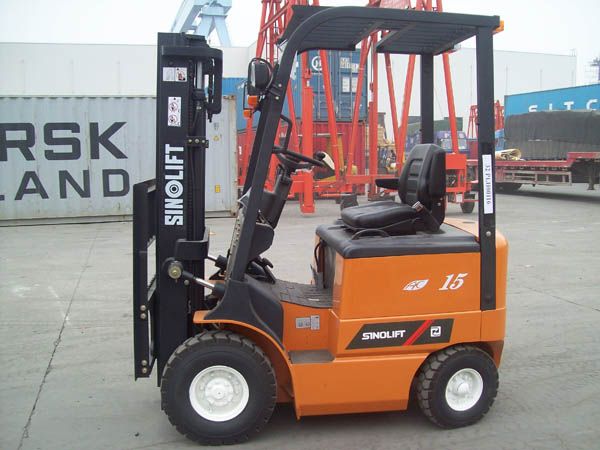

Name：1-3T 4-wheels Electric forklift
Model：1-3T 4-wheels
Product Introduction：1-3T 4-wheels Electric forklift

1.New SINOLIFT Battery 4 Wheeler, Capacity 1. 0, 1. 5 & 1. 8 ton @ Load Center 500mm. 2 or 3 stage mast with Lifting Height from 3. 0m (9. 8ft) to 6. 0m (19. 7ft) .
2.Fitted with reliable GE DC Controller or Euro AC Controller, Hydraulic Smooth Power Steering. Clear LCD Meter and High Capacity Traction Battery.
3.Most Cascade Forklift Attachment applicable.

General	Manufacturer					SINOLIFT L Series 1.0T-3.0T Battery Forklift Specifications
	Model					CPD10	CPD15	CPD20	CPD25	CPD30	CPD15J	CPD20J	CPD25J	CPD30J
	Power type					Battery	Battery	Battery	Battery	Battery	Battery
	Rated capacity				kg	1000	1500	2000	2500	3000	1500	2000	2500	3000
	Load center				mm	500	500	500	500	500	500	500	500	500
Dimensions	Lift height				mm	3000	3000	3000	3000	3000	3000	3000	3000	3000
	Free lift E				mm	164	164	140	140	145	162	140	140	145
	Fork size N×U×L				mm	920×120×40	920×120×40	1070×122×40	1070×122×45	1070×125×45	920×120×40	1070×120×40	1070×120×45	1070×125×45
	Fork outside spread (Min./Max.)				mm	200/950	200/950	240/1020	240/1020	260/1100	200/980	240/1020	240/1020	260/1100
	Mast tilt angle (forward/backward) α / β				deg	6/12	6/12	6/12	6/12	6/10	6/12	6/10	6/10	6/10
	Front ovehang A2				mm	436	436	484	484	454	436	484	484	454
	Overall dimensions	Length to face of fork A1			mm	2056	2056	2349	2381	2481	2056	2349	2381	2481
		Overall width B1			mm	1080	1080	1152	1152	1265	1090	1265	1265	1265
		Mast lowered height H1			mm	1995	1995	2060	2060	2040	1995	2040	2040	2040
		Mast extended height H3			mm	4038	4038	4040	4040	4270	4038	4270	4270	4270
		Overhead guard height H2			mm	2162	2162	2159	2159	2125	2162	2125	2125	2125
	Turning radius R				mm	1820	1820	2050	2100	2230	1820	2050	2100	2230
	Min. right angle aisle width X				mm	1810	1810	2110	2150	2280	1810	2110	2150	2280
	Min. right angle stacking aisle width				mm	3370	3370	3715	3755	3915	3370	3715	3755	3915
Performance	Travel speed (no load / full load)				km/h	13.5/11.5	13/11	12.5/11	12.5/10.5	14.5/12	15/13	14/12	14/12	14.5/12
	Lifting speed (no load / full load)				mm/sec	400/300	390/285	400/260	390/250	420/280	400/300	420/300	420/300	420/280
	Max. pull force (full load)				KN	6	6.5	8	8	10	6.5	8	8	10
	Services weight				kg	2900	3120	4160	4360	4850	3120	4160	4360	4850
	Max. gradebility				%	15	15	10	10	10	15	10	10	10
Wheel & Tire	Tyre			Front		6.50-10-10PR	6.50-10-10PR	7.00-12-12PR	7.00-12-12PR	23×9-10	6.50-10-10PR	23×9-10-18PR	23×9-10-18PR	23×9-10
	Tyre			Rear		5.00-8-8PR	5.00-8-8PR	18×7-8-8PR	18×7-8-8PR	18×7-8	5.00-8-8PR	18×7-8-14PR	18×7-8-14PR	18×7-8
	Tread			Ront B2	mm	890	890	960	960	1040	890	1040	1040	1040
	Tread			Rear B3	mm	920	920	950	950	980	920	950	950	980
	Wheelbase A3				mm	1250	1250	1500	1500	1630	1250	1500	1500	1630
	Ground clearance (no load / full load)			Mast M	mm	105/95	105/95	120/100	120/100	105/85	105/95	105/85	105/85	105/85
	Ground clearance (no load / full load)			Fram F	mm	105/95	105/95	120/100	120/100	140/120	105/95	140/120	140/120	140/120
Power & Control	Battery		Model			D-440(D-480 option)		7DB700		D-480	D-440B	7DB700	7DB700	5VBS500
			Voltage		v/Ah	48/440 (480)		48/700		80/480	48/440	48/700	48/700	80/500
			Battery Weight		kg	760(820)		1180		1390	760	1180	1180	1450
	Motor		Drive motor	Model		XQ-5-3A1		XQ-5-7A3		XQ-10-1-T	MT708B	MT754B	MT754B	MT776B
			Drive motor	Rated power	kw/rpm	5.3(an hour)		7.0(an hour)		10/1200	8/1600	8/1300	8/1300	13/1500
			Lifting Motor	Model		XQD-8.2-1		XQD-8.6-3D		XQD-10-3C	MT719B	MT325B	MT325B	MT800B
			Lifting Motor	Rated power	kw/rpm	8.2(fifteen minutes)		8.6(fifteen minutes)		10/2000	10/2450	15/2200	15/2200	22/2100
	Controller				L	American GE DC separate excitation controller					Italian SME AC separate excitation controller
