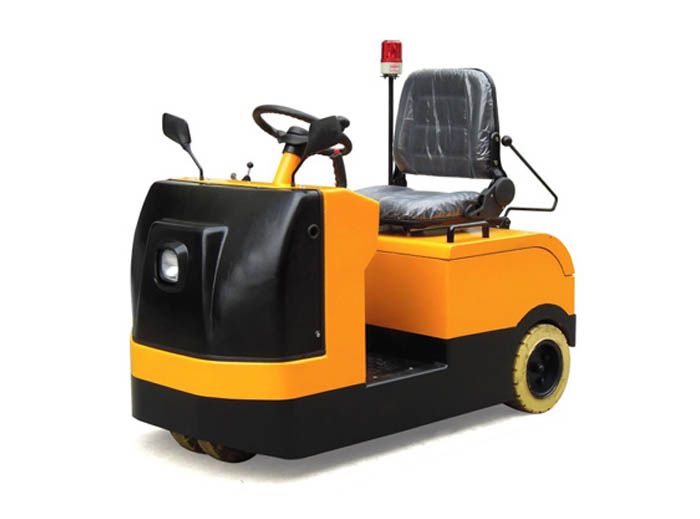

Name:QD-50BH 5T Electric towing tractor
Model:QD-50BH 5T
Product Introduction:QD-50BH 5T Electric towing tractor

This QD-BH u is updated version from QD-B with rear driven system.
Safe automotive controls and steering wheel eliminate hand injuries and carpal tunnel syndrome hazards associated with twist grip controls.
This tractor truck uses stepless speed regulating system controlled by MOS tube and is highly efficient and energy saving.

It is comfortable for the operator to drive this truck.

Characterized by high carrying capacity, this tractor truck is an important carrier for conveying luggage or cargoes in airports, railway stations, factories, and postal services, etc.







Model No. QD-20BH QD-30BH QD-30BH(AC) **
Towing Capacity kg   2000 3000 3000
Driving Motor W   DC-24V-2000W  DC-24V-2000W  DC-24V-2200W AC
Battery     D-240A 24V D-300A 24V D-300A 36V
Driving Speed km/h   0~6.5 0~6.5 0~7.5
Controller Type     CURTIS solid-state speed CURTIS solid-state speed C3-250A
Working Time Hours    6 6 6
Min. Turning Radius mm R 1000 1850 1850
Operation Type     Rider seated  Rider seated Rider seated
Min.under-clearance mm   85 85 85
Steering Wheel mm   White Rubber Φ267x127 White Rubber Φ267x76 White Rubber Φ267x76
Drive Wheel mm   Φ330x165 Φ330x114 Φ330x114
Overall length mm L 1490 1700 1700
Overall width mm W 820 800 800
Overall height mm H 1350 1240 1240
Service Weight kg   1150 1450 1580
