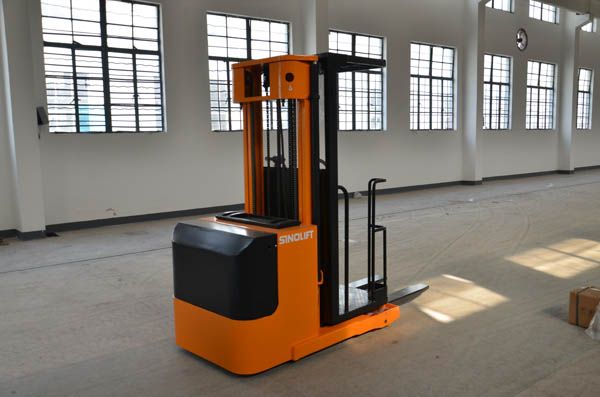

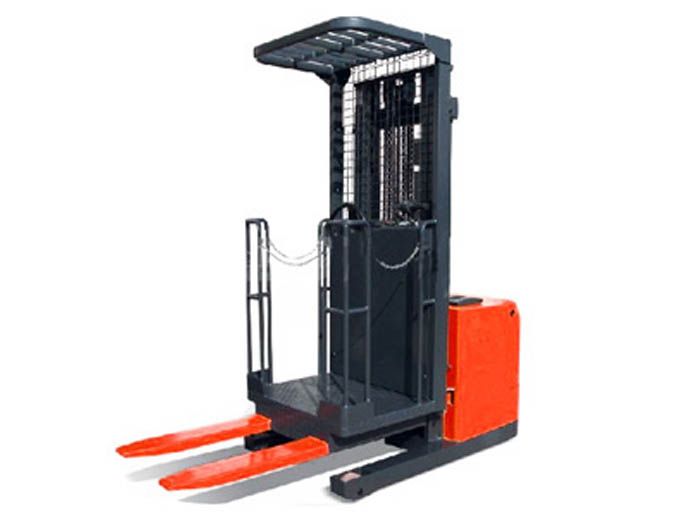

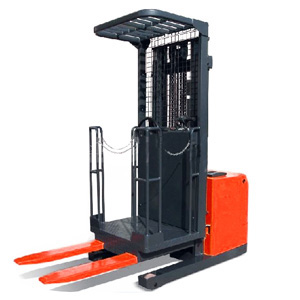

Name:CDG Sepl-propelled Electric Order Picker
Product Introduction:CDG Sepl-propelled Electric Order Picker

Operators rise with the load to pick directly from racks. Superior visibility and precise, responsive controls create a comfortable, highly efficient work platform.

A wide selection of lift heights and performance package fill all types of warehouse needs- from high level order picking to expansion of low-level pick locations with the economical order picker.




Model   CDG500
Load capacity kg 500
Max. lifting height mm 2700
Operator type   Self-propelled
Load wheels size mm Φ140*80 PU
Drive wheel size   Φ260*90 PU
Loading platform (fork) size mm 1650*1000
Fork size   600*600
Manned platform size(L*W) mm 840*600
Min. turning radius mm 2042
Width of single fork  mm 150
Travel speed (unladen/laden) km/h 7/6
Lifting speed mm/s 90/75
Lowering speed mm/s 180/200
Drive motor kw/v 1.2/24
Pumping power kw/v 3.0/24
Batteries (traction battery) Ah/V D-210/24
Dimensions mm 2470*1650*2530
Net weight kg 1230
