Name:HL series Scale Hand Pallet Truck
Model:HL

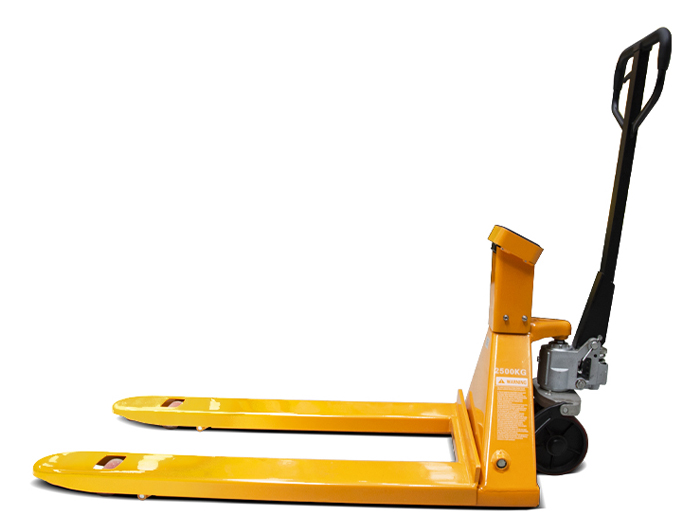

Product Introduction:The HL scale pallet truck is a simple, economical and robust tool to be used for lifting and weighing of transported loads. Thanks to the 4 load cells it is able to be very precise and functional in all internal weighing operations; ideal for checking incoming goods, avoiding overloads and determining shipping weights.

Pallet truck completes with built in weighing scales.
Strong robust low profile painted frame.
Runs off rechargeable "D" cell batteries / or mains.
Battery charger included.

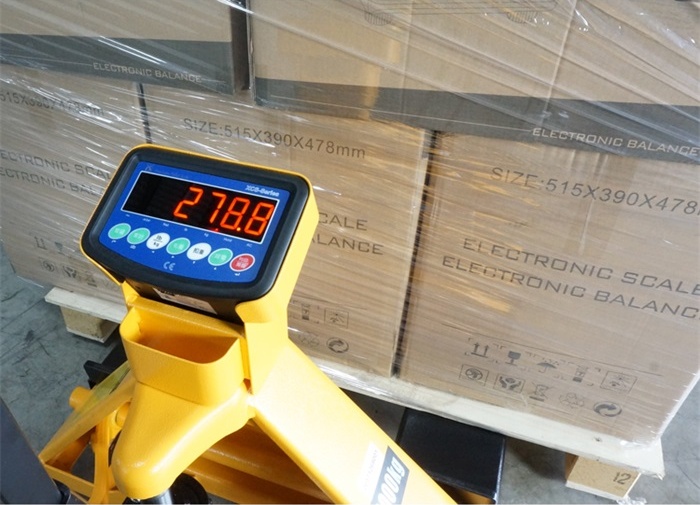

Scales clearly display the weight of the load on the forks.

Four accurate load cells.

1. Built in printer for printing weight data on site is available on request.

2. Select Your Body Material

Design your pallet truck scale for maximum durability based on your specific weighing application. To accommodate a variety of needs, the HL family offers a mild painted steel material for dry environments and a stainless steel option for corrosive or wet environments. These can also be combined for a painted steel body with stainless steel fork shoes.

3. Ideal for HL Facilities

Reduce contamination risk with the following features, which are included with the stainless steel design:

- All welds are continuous and polished.

- All surfaces are electropolished.

- The fork surfaces are completely closed.

- The underside of the forks are open.

- All bearings are made of lubrication-free polymers.



Model

HL20

HL20P

HL25

HL25P

HL30

Pump

AC casting

AC casting

AC casting

AC casting

AC

With/Without Printer

Without Printer

With Printer

Without Printer

With Printer

Without Printer

Capacity

kg

2000

2000

2500

2500

3000

Fork height

mm

80-205

80-205

80-205

80-205

80-205

Steering wheel

mm

φ180x50

φ180x50

φ180x50

φ180x50

φ180x50

Single load roller

mm

φ74x93

φ74x93

φ74x93

φ74x93

φ74x93

Tandem load roller

mm

φ74x70

φ74x70

φ74x70

φ74x70

φ74x70

Size of fork

mm

160x60

160x60

160x60

160x60

160x60

Width over forks

mm

550/680

550/680

550/680

550/680

550/680

Fork length

mm

1150/1220

1150/1220

1150/1220

1150/1220

1150/1220

Battery

DC 6v/4.5ah

DC 6v/4.5ah

DC 6v/4.5ah

DC 6v/4.5ah

DC 6v/4.5ah

Charger

100V-240V

100V-240V

100V-240V

100V-240V

100V-240V

Paper for printer (thermal paper )

mm

//

57X50

//

57X50

//

N.W

kg

106/108

110/112

122/124

126/130

128/130

Packing

2pcs/pallet

2pcs/pallet

2pcs/pallet

2pcs/pallet

2pcs/pallet

Packing size

mm

2300X700X760

2300X700X760

2300X700X760

2300X700X760

2300X700X760

2300X800X760

2300X800X760

2300X800X760

2300X800X760

2300X800X760
