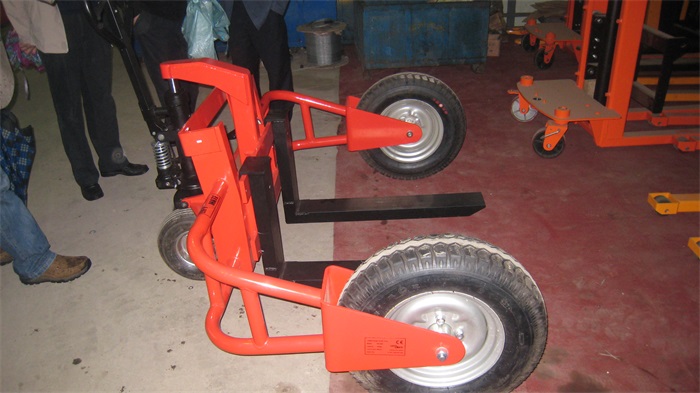

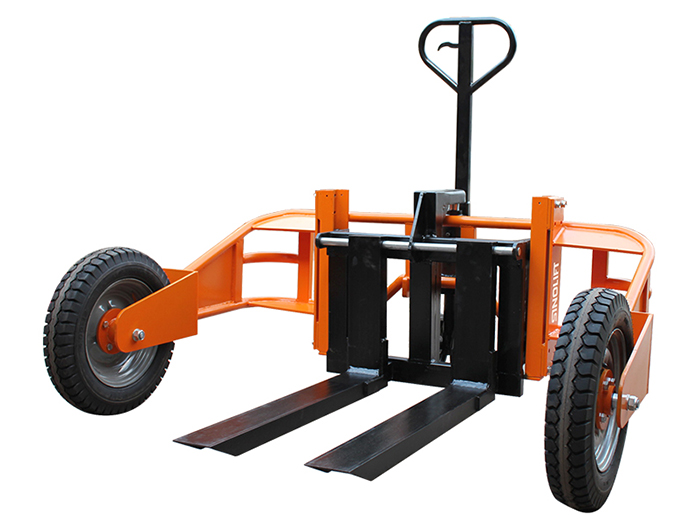

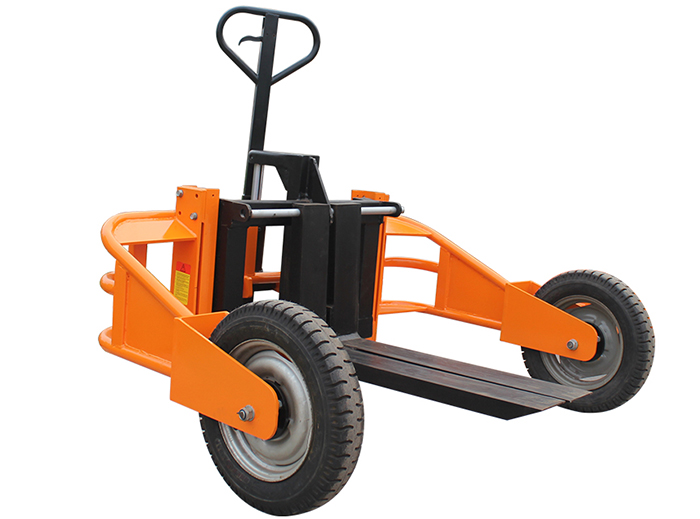

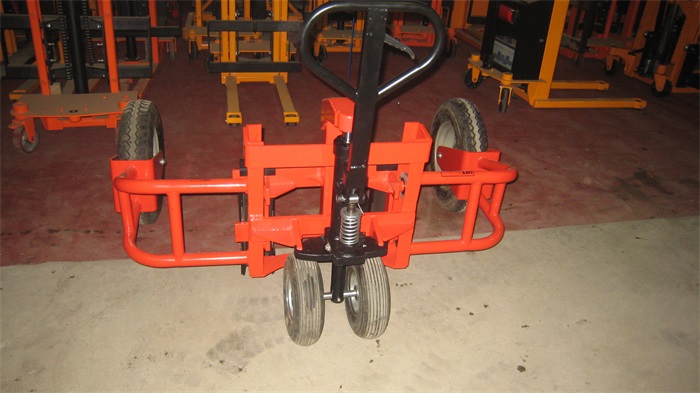

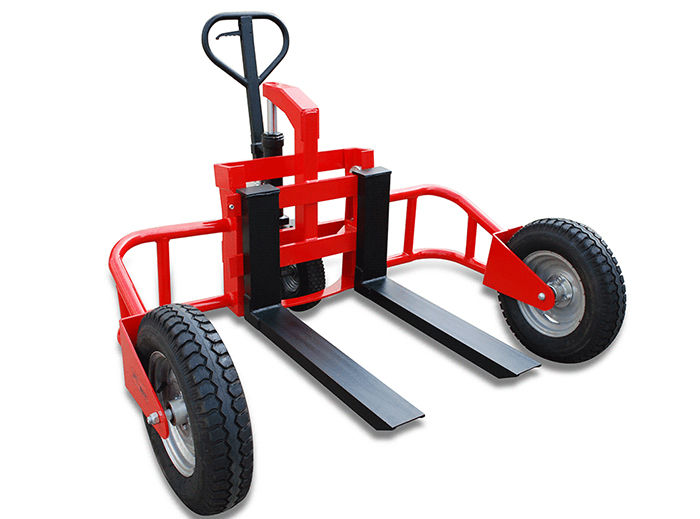

Name:RP1500B Rough Terrain Pallet Truck
Model:RP1500B
Product Introduction:The rough terrain pallet truck with fork width adjustment is perfect for transporting palletised loads through uneven ground, for many different types of pallets.

• Transports loads on uneven ground
• Strong & light tubular steel framing
• Little maintenance required
• Great maneuverability
• Hydraulic fork lift with inbuilt hand pump
• Adjustable width over forks
• Driving axle on self-lubricating bearings
• Wheels fitted onto sealed bearings
• Easy handling
• Electric version and special sizes available

Model

RP1500B

Capacity

kg/lbs

1500/3300

Max.fork height

H

mm/inch

323/12.7"

Min.fork height

h

mm/inch

53/2.1"

Wheel base

N

mm/inch

973/38.3"

Fork length

L

mm/inch

820/32.3"

Load center

mm/inch

400/15.7"

Adjustable fork width

E

mm/inch

316-660/12.4"-26"

Distance inside the front wheel

F

mm/inch

1279/50.4"

Front load wheel

D*f1

mm/inch

568*145/22.4"*5.7"

Rear steering wheel

d*f2

mm/inch

350/13.8"

Turning radius

Wa

mm/inch

1200"/47.2"

Overall length

A

mm/inch

1250/53.1"

Overall width

B

mm/inch

1711/67.4"

Overall height

C

mm/inch

1220/48"

Net weight

kg/lbs

199/438"
