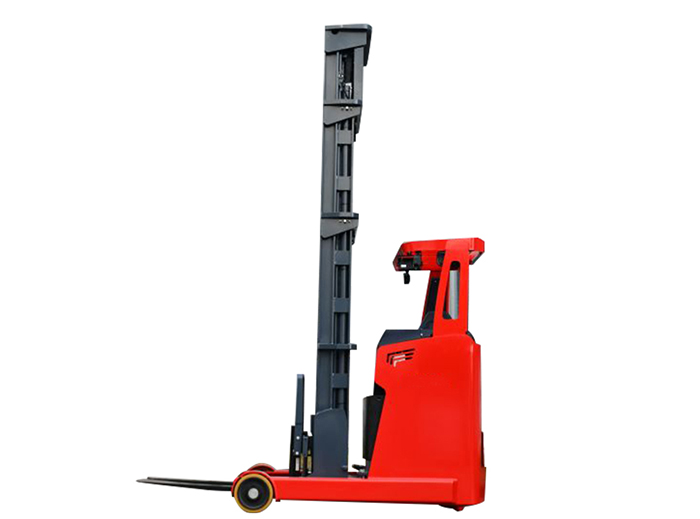

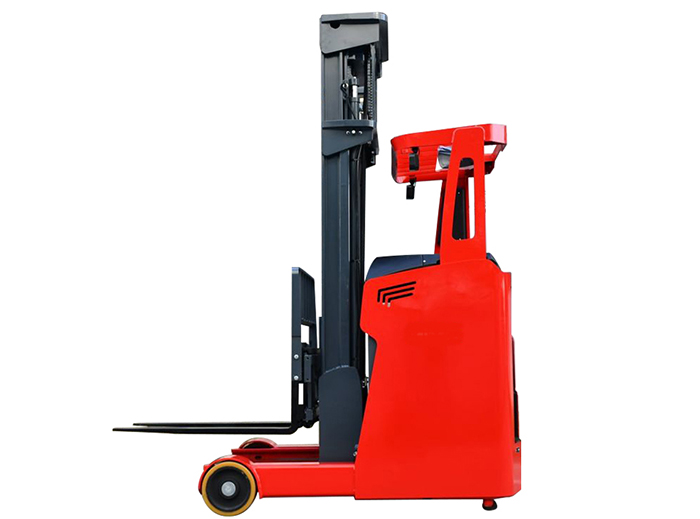

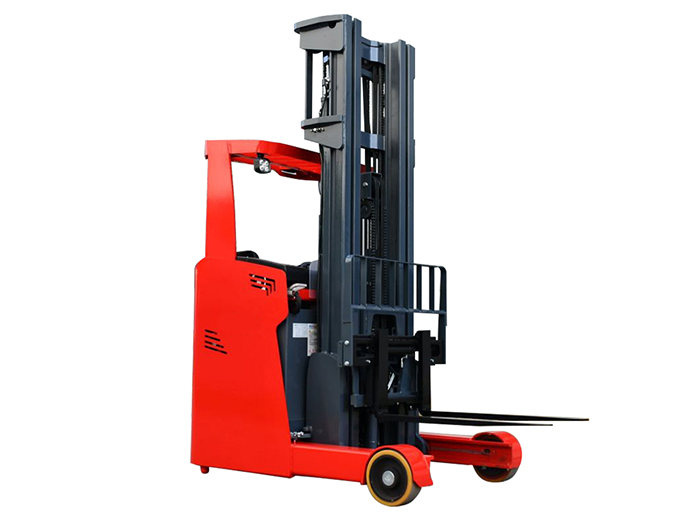

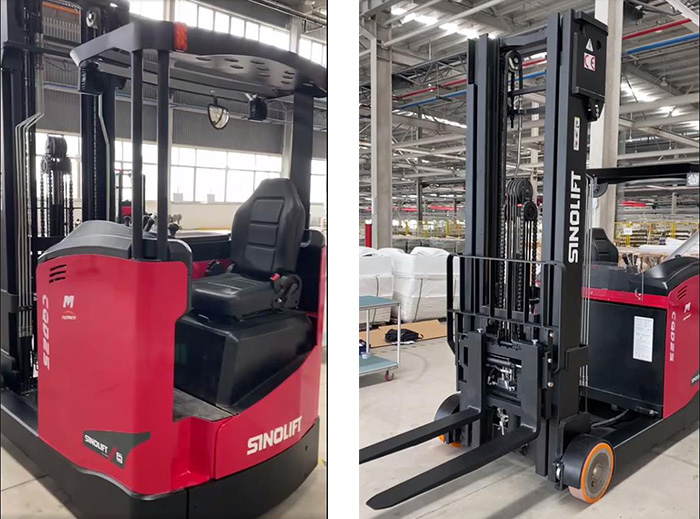

Name:2.5Ton 3.0Ton Seated Electric Reach Truck
Model:CQD25Z CQD30Z
Product Introduction:Relaxed, comfortable and safe work throughout the whole shift guaranteed by the holistic ergonomics concept. Footplate, steering wheel, seat – all these components can be individually adjusted to match the work requirement at hand as well as the stature and preferences of the driver.

Main Features:
1. Four Wheel Braking
Equipped with front and back wheel braking, with a better braking performance, which is suitable for using on the wed and frozen ground. All this can guarantee operator safety;
2. Ergonomics Design
Easy operation joystick design and multi-function display with wheel position, which can makes operation more comfortable and convenient;
Adjustable seat can provide operator with the most comfortable operation environment;
3. Excellent Weight-bearing Mast
No Loading capacity loss within 6000mm, and excellent loading performance at super-high position;
4. Strong Endurance
Full AC system design, high-efficiency and energy-saving motors without carbon brush can meet multiple operation requirements under heavy working conditions.

Standard

1.1

Model

CQD25Z

CQD30Z

1.2

Power type

Battery

Battery

1.3

Operation type

Seated

Seated

1.4

Rated capacity

Q(kg)

2500

3000

1.5

Load center

C(mm)

600

600

1.6

Front overhang

x(mm)

221

221

1.7

Wheelbase

y(mm)

1700

1750

Weight

2.1

Service weight(incl. battery)

kg

5038

5288

Wheel

3.1

Wheel type

PU

PU

3.2

Load wheel

mm

φ343×130

φ343×130

3.3

Drive wheel

mm

φ400×160

φ400×160

3.4

Auxiliary wheel

mm

/

/

Size

4.1

Mast closed height

h1(mm)

4329

4329

4.2

Free lift height

h2(mm)

3527

3527

4.3

Lift height

h3(mm)

10000

10000

4.4

Overall length

l1(mm)

2532

2604

4.5

Overall width

b1/b2(mm)

1270/1400

1270/1400

4.6

Fork size

l/e/s(mm)

1070×125×45

1070×125×45

4.7

Turning radius

Wa(mm)

1987

2037

Function

5.1

Driving speed(load/unload)

km/h

8.5/10

8.5/10

5.2

Lifting speed(load/unload)

mm/s

210/340

210/340

5.3

Lowering speed(load/unload)

mm/s

300/250

300/250

5.4

Brake type

Electromagnetic

Electromagnetic

Drive

6.1

Battery voltage/capacity

V/Ah

48/560

48/750

6.2

Battery weight

kg

920

1150
