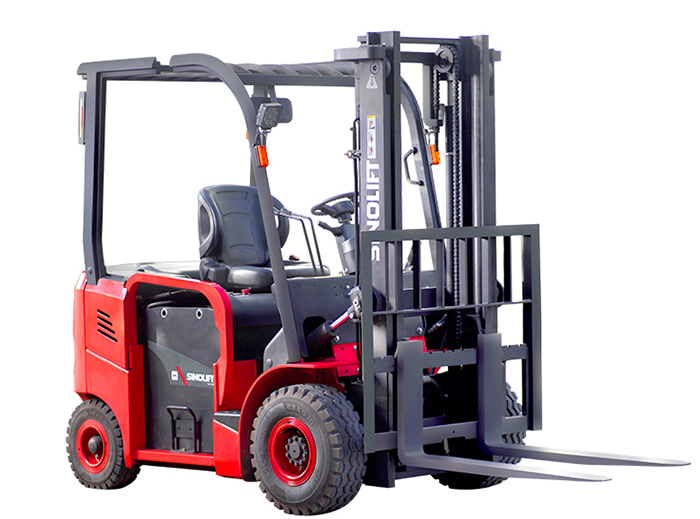

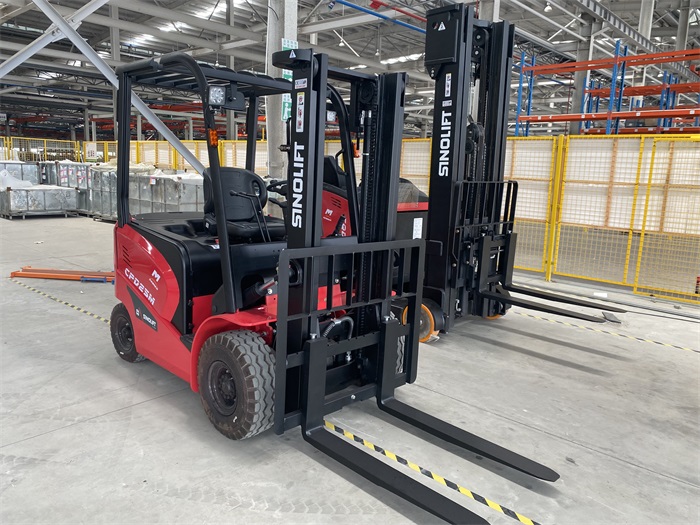

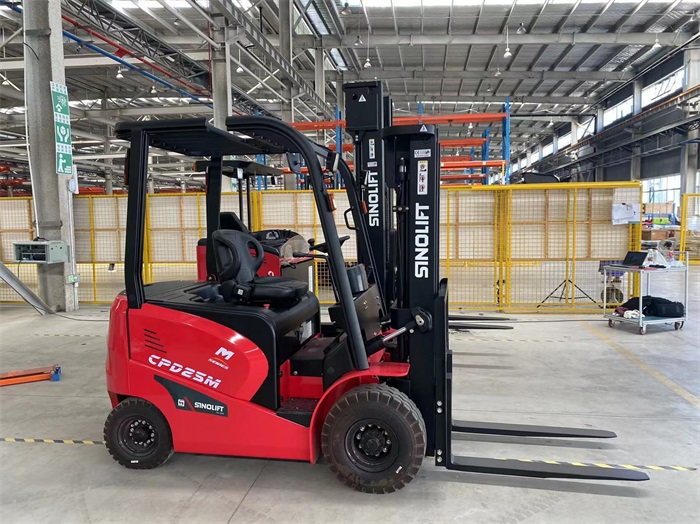

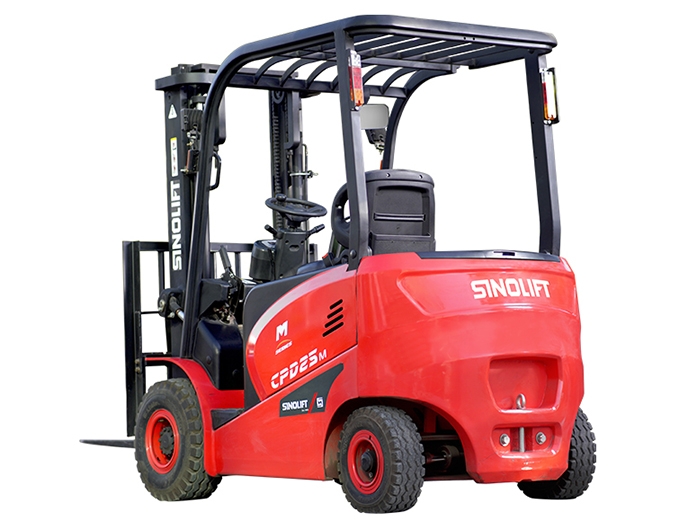

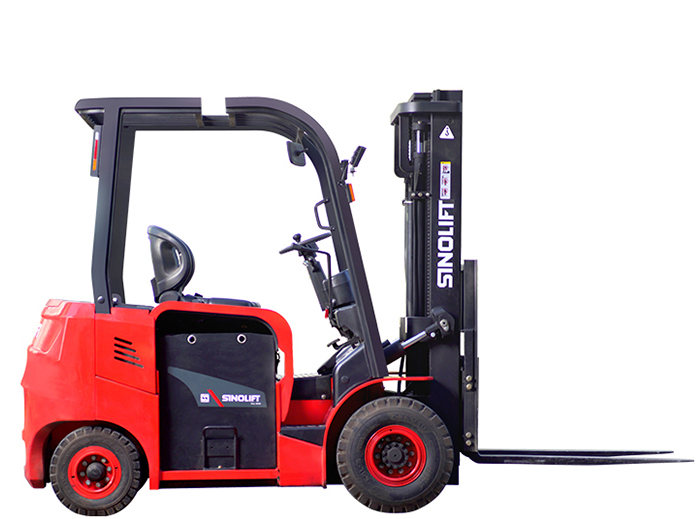

Name:2.5 Ton Electric Forklift Truck
Model:CPD25M
Product Introduction:The newest generation M series 2-2.5t electric counterbalance truck is new product series of SINOLIFT. The totally new designed outline, safety, comfortable and reliability are fully improved, and the whole truck's performance is also increased.

* High Performance and Big Productivity in a Compact Body.

* Long Operating Time and Long Battery Life for Your Long-lasting Business.

* Outstanding Stability during Turns and Load Handling Supports Efficient Work.

* Smooth Start-off, Travel, and Braking, Stress Free Operation in Your Hand.

* Comfortable Design and Operator-friendly Features for Day-to-day Operations

* Easy Maintenance and Easy Management, Totally Supports Your Worksite.

characteristic

1.1

Manufacturer Brand

SINOLIFT

1.2

Model

CPD20-MA1

CPD20-MA1Li

CPD25-MA1

CPD25-MA1Li

1.3

Power Type

Electric

Electric

Electric

Electric

1.4

Operation Type

Seated

Seated

Seated

Seated

1.5

Rated Capacity

Q

kg

2000

2000

2500

2500

1.6

Load Centre

c

mm

500

500

500

500

1.7

Front Overhang

L2

mm

435

435

435

435

1.8

Wheelbase

L1

mm

1485

1485

1485

1485

Size

2.1

Mast Tilt Angle

α/β

°

6/12

6/12

6/12

6/12

2.2

Mast Lowered Height

H1

mm

2050

2050

2050

2050

2.3

Free Lift Height

H3

mm

140

140

140

140

2.4

Standard Mast Lift Height

H

mm

3000

3000

3000

3000

2.5

Mast Extended Height

H2

mm

4025

4025

4025

4025

2.6

Overhead Guard Height

H4

mm

2125

2125

2125

2125

2.7

Distance from Botoom to Seat

mm

1070

1070

1070

1070

2.8

Traction Bolt Height

mm

308

308

308

308

2.9

Overall Length (include forks)

L

mm

3400

3400

3400

3400

2.10

Length to Face of Fork

L'

mm

2330

2330

2330

2330

2.11

Overall Width

W1

mm

1265

1265

1265

1265

2.12

Fork Size

TxWxL4

mm

40/122/1070

40/122/1070

40/122/1070

40/122/1070

2.13

Fork Type

ISO2328 2A

ISO2328 2A

ISO2328 2A

ISO2328 2A

2.14

Fork Carriage Outline Width

mm

1038

1038

1038

1038

2.15

Fork carriage spread width

W5

mm

247-995

247-995

247-995

247-995

2.16

Ground Clearance Under Mast Laden

H5

mm

115

115

115

115

2.17

Ground Clearance at Center of the Wheelbase

H6

mm

120

120

120

120

2.18

Min. Right Angle Stacking Aisle Width (Pallet 1000x1000)

Ast

mm

3715

3715

3715

3715

2.19

Min. Right Angle Stacking Aisle Width (Pallet 1200x1200)

Ast

mm

3915

3915

3915

3915

2.20

Turing Radius

r

mm

2080

2080

2080

2080

Weight

3.1

Service Weight

kg

3630

3360

4050

4050

3.2

Front Axle Rated Load Capacity with laden

kg

5035

4720

5820

5820

3.3

Rear Axle Rated Load with Laden

kg

595

640

730

730

3.4

Rated Load Capacity with unladen

kg

1775

1465

1745

1745

3.5

Rear Axle Rated Load with unladen

kg

1855

1895

2305

2305

Tyre & Chassis

4.1

Tyre Type

Pneumatic

Pneumatic

Pneumatic

Pneumatic

4.2

Tyre Size (Front)

23×9-10-18PR

23×9-10-18PR

23×9-10-18PR

23×9-10-18PR

4.3

Tyre Size (Rear)

18X7-8-14PR

18X7-8-14PR

18X7-8-14PR

18X7-8-14PR

4.4

Wheel Number (x=Drive Wheel)

2x/2

2x/2

2x/2

2x/2

4.5

Front Tread

mm

1058

1058

1058

1058

4.6

Rear Thread

mm

950

950

950

950

Performance

5.1

Max. Travel Speed (Laden/Unladen)

km/h

14/15

14/15

14/15

14/15

5.2

Lifting Speed (Laden/Unladen)

mm/s

260/430

260/430

260/430

260/430

5.3

Lowering Speed (Laden/Unladen)

mm/s

450/410

450/410

450/410

450/410

5.4

Max. Gradeability (Laden/Unladen)

%

15/20

15/20

15/20

15/20

5.5

Service Brake Type

Hydraulic

Hydraulic

Hydraulic

Hydraulic

5.6

Parking Brake Type

Mechanical

Mechanical

Mechanical

Mechanical

Power & Transmission

6.1

Drive Motor Rating S2 60min

kW

11

11

11

11

6.2

Lifting Motor Rating at S315%

kW

12

12

12

12

6.3

Battery Voltagl/Capacicty K5

V/Ah

48/630
(600-x-700)

48/460
(410-x-500)

48/630
(600-x-700)

48/460
(410-x-500)

6.4

Battery Weight

kg

990
930-1200

300
280-320

990
930-1200

990
930-1200

6.5

Maximum Allowable Battery Size

mm

964x580x675

964x580x675

964x580x675

964x580x675

Others

7.1

Controller Brand

CURTIS

CURTIS

CURTIS

CURTIS

7.2

Controller Model

1234SE+1232SE

1234SE+1232SE

1234SE+1232SE

1234SE+1232SE

7.3

Attachment Pressure

bar

140

140

140

140

7.4

Attachment Oil Volume

L/min

65

65

65

65

7.5

Hydraulic oil tank volume

L

35

35

35

35

7.6

Sound Level at Driver's Ear According to EN 12 053

dB

72

72

72

72

Note: "CPD" means full electric Counter-balanced Electric Forklift, "20/25" means rated load capacity 2T / 2.5T, "M" is serial code, "A" is equipped with full AC system, "J" is equipped with semi-AC system, "1" is serial code, "Li" is equipped with lithium-ion battery, "S" means battery can be roll side out.
