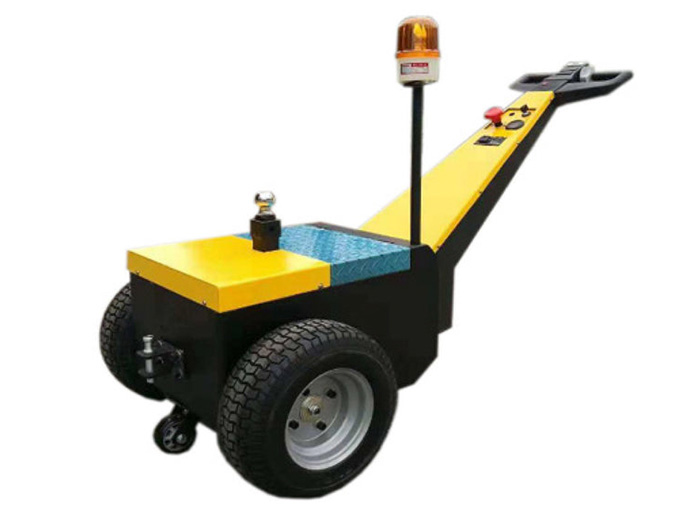

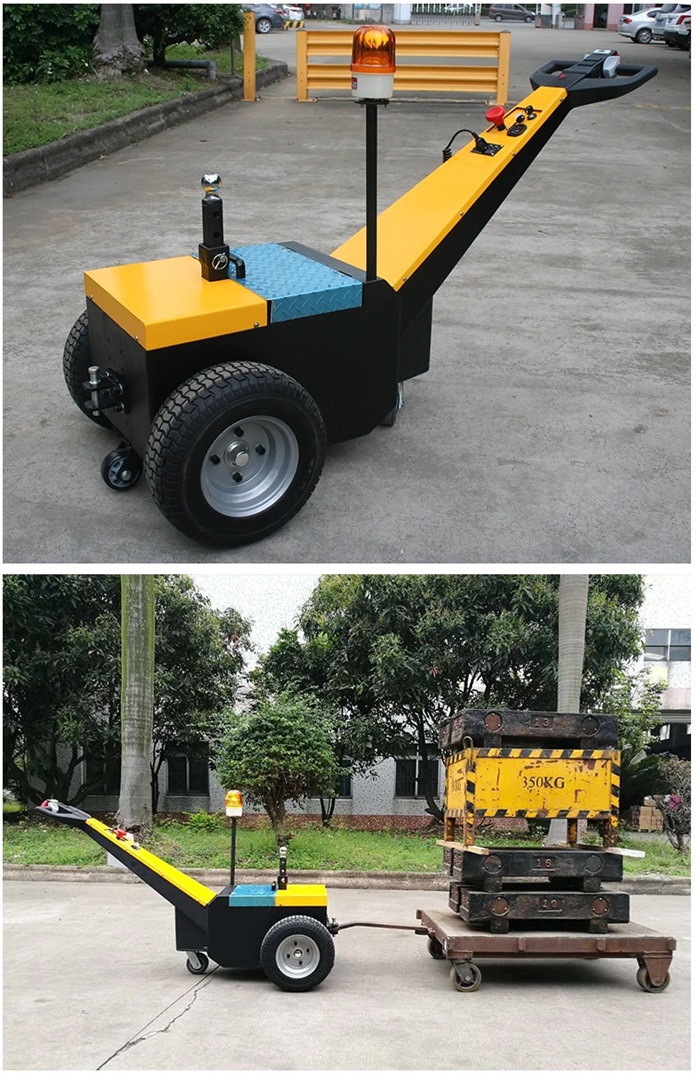

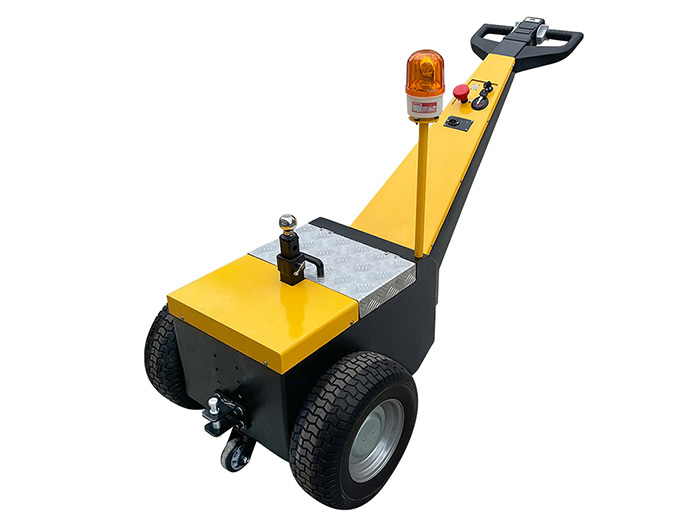

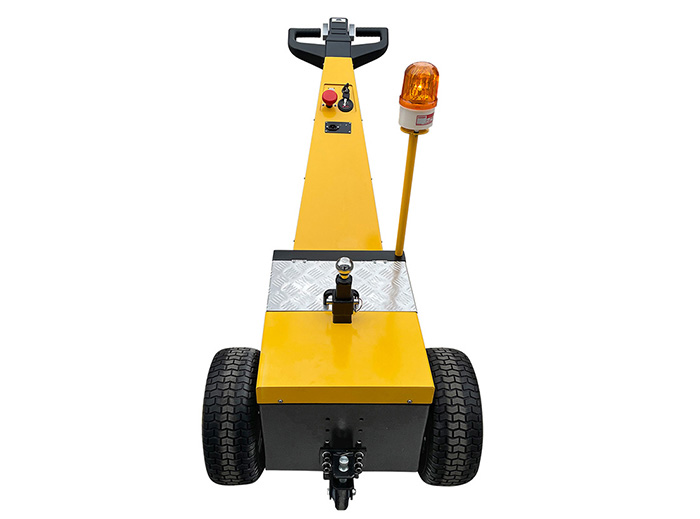

Name:ETP Walkie Electric Tugger
Model:ETP
Product Introduction:se for logistics handling and traction in hospitals, factories, aviation and other fields to facilitate different traction requirements.

Use for logistics handling and traction in hospitals, factories, aviation and other fields to facilitate different traction requirements.

Features:

1. Use for logistics handling and traction in hospitals, factories, aviation and other fields to facilitate different traction requirements.

2. Man-machine integrated control handle flexible in operation with many functions.

3. Maintenance-free battery and permanent magnet traction motor provides greater traction power.

4. Stable product performance, compact size, flexible operation, noise free, environmental protection, easy maintenance.

5. US imported Curtis computer controller for greater torque, faster speed, higher reliability, better thermal performance and smoother acceleration.


Model

ETP200

ETP250

ETP350

ETP400

Power form

electric

Operation type

Walking

Load

kg

2000

2500

3500

4000

Rated traction

n

480

720

800

800

Wheelbase

mm

630

630

680

680

Weight (including battery)

kg

275

295

336

345

Tyre type, driving wheel/bearing wheel

Rubber solid core/pu

Drive wheel size (diameter X width)

mm

2xφ406x150

2xφ406x150

2xφ375x115

2xφ375x115

Bearing wheel size (diameter X width)

mm

φ125x50

φ150x50

φ150x50

φ150x50

Front wheelbase, drive end

mm

460

460

575

575

Vehicle height

mm

1100

1100

1230

1230

Minimum/maximum height of handle lever in operating position

mm

915

915

1000

1000

Traction coupler height range

mm

220/400

225/400

225/360

225/360

length

mm

1705

1735

1915

1915

width

mm

760

760

805

805

Ground clearance at the center of the wheelbase

mm

100

100

100

100
