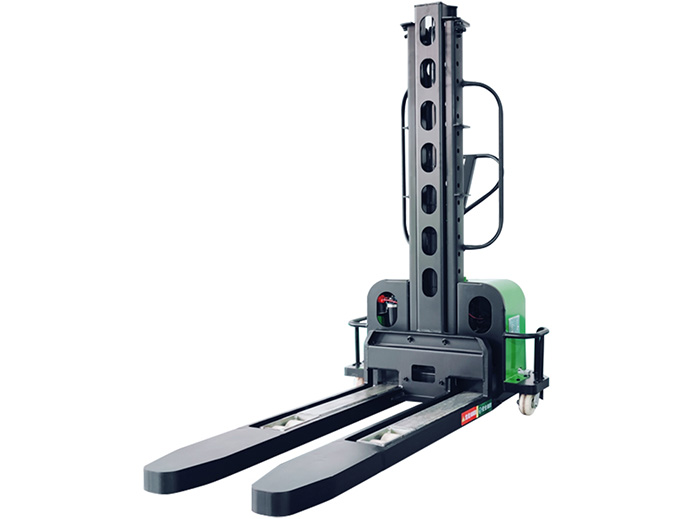

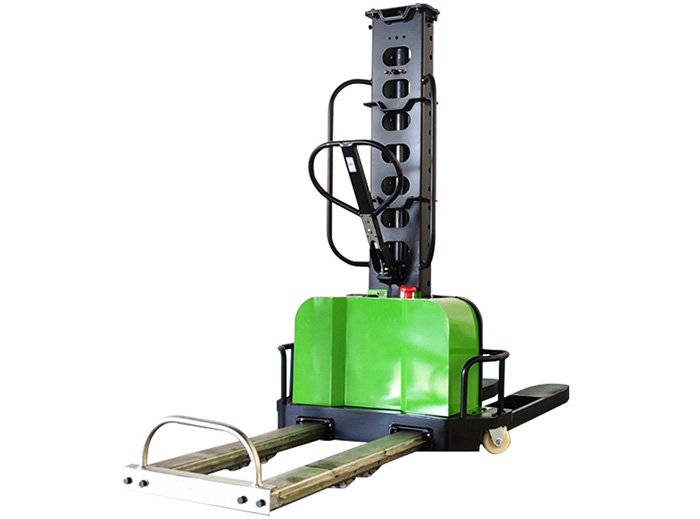

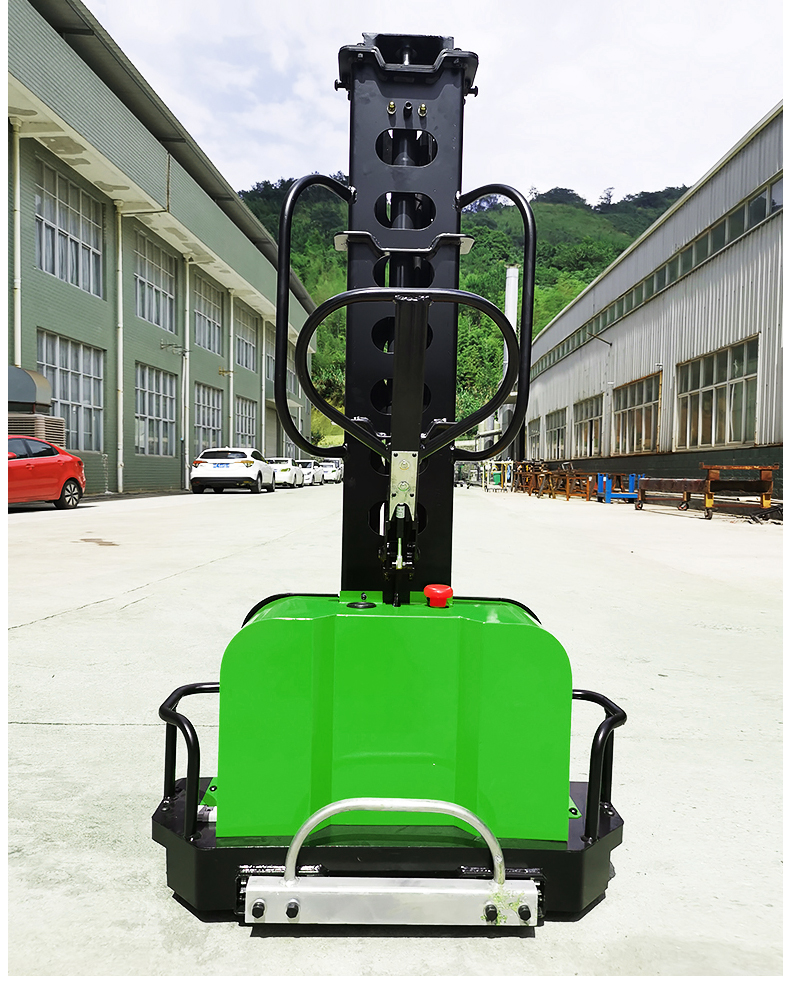

Name:BSL semi-electric self loading stacker
Model:BSL
Product Introduction:The Self Loader also has a high-performance pump unit that provides fast and stable lift together with low noise and can travel with the vehicle to serve different purposes

The BSL Self Loading Stacker has been designed, developed, and built to give outstanding long service with minimum maintenance required within industry and commerce.  With full-electric design, it would better and more efficient to use.

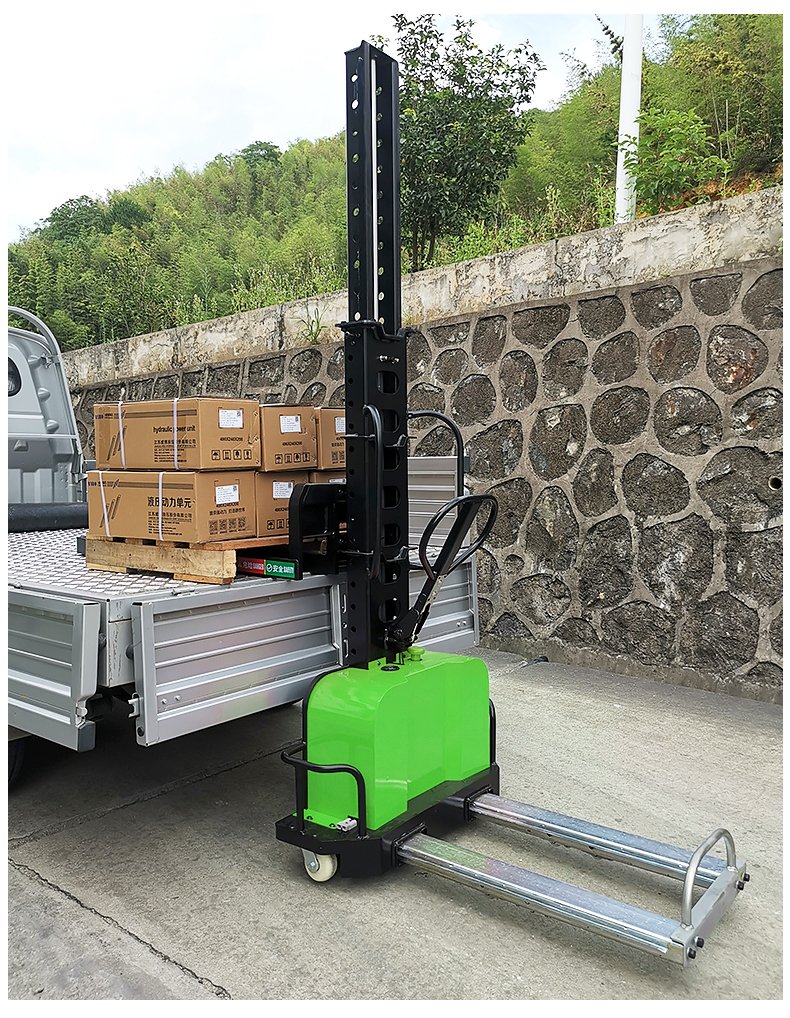

Similar to the semi-electric model, It is easy and quick to transport as can load itself into a van, pick-up, lorry, or trailer (with or without a load on the forks) to eliminate reloading problems at your destination.

·         Loading capacity: 500kg, 700kg and 1000kg for option. Lifting height is 800mm-1600mm for option.

·         The loading is no reduced at max. lifting height,

·         The lifting and lowering speed is adjustable.

·         Steering chain auxiliary device.

·         Over discharge protection, extending battery life.

·         Maintenance free battery, safe operation and no pollution.

·         Explosion-proof valve make the lowering more stable and reliable

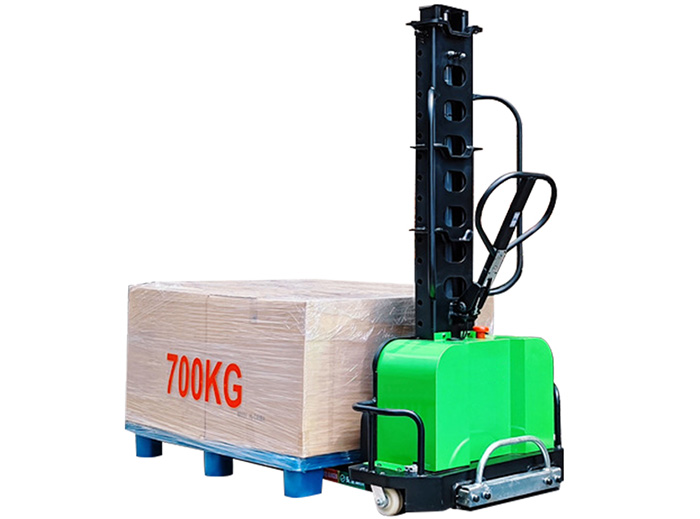

·         700kg stacker adds the armrest to facilitate the lifting of the cargo.

·         Add the design of the guide rail, makes pushing and pulling the goods more labor-saving and convenient.

Model

BSL-05/BSL-07

BSL-10

Performance

Maximum load capacity

kg

500/700

500/700

1000

1000

Load center

mm

450

450

450

450

Weight with battery

kg

276/286

290/302

337

372

Maximum lifting height

mm

800

1300

900

1600

Lifting speed (without load)

mm/s

140

140

65

65

Lifting speed (with load)

mm/s

135

135

35

35

Lowered speed (without load)

mm/s

140

140

65

65

Lowered speed (with load)

mm/s

145

145

35

35

Dimensions

Overall length of frame

mm

1578

1578

1560

1560

Overall width of frame

mm

885

885

913

913

Mast lowered height

mm

1495

1595

1750

1950

Max height(mast lifted with backrest

mm

2760

2860

2985

3185

Wheelbase

mm

832

832

845

Fork length

mm

1180

1180

1180

1180

Fork outside width

mm

565

565

580/626

580/626

Fork inside width

mm

195

195

236

236

Fork thickness

mm

60

60

70

70

width of theoretical minimum aisle for right-angle stacking 1200x1000

mm

1200

1200

1200

1200

Min frounf height

mm

20

20

32

32

Fork lowered height

mm

90

90

90

90

Minimum turning radius

mm

1000

1000

1000

1000

Tire

Front wheel

mm

80*50

80*50

80*50

80*51

Battery

Hoist motor type

DC

Rated output

kw

0.8

0.8

1.2

1.2

Battery Type

Maintenance-free battery

Voltage

V

12

12

12

12

Capacity

AH

45

45

45

45
