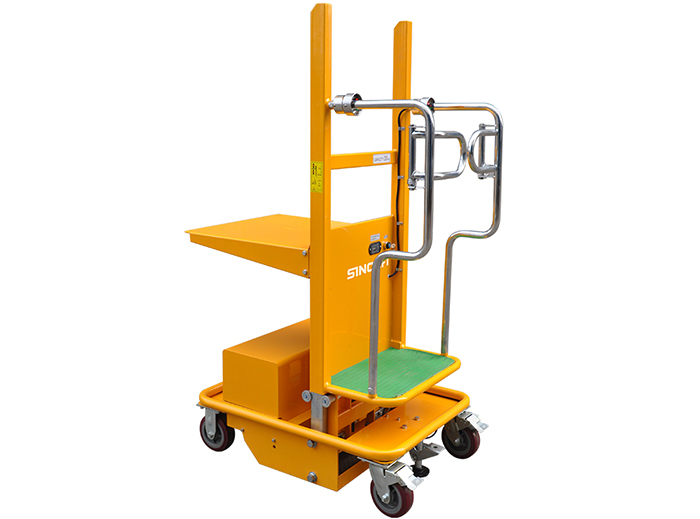

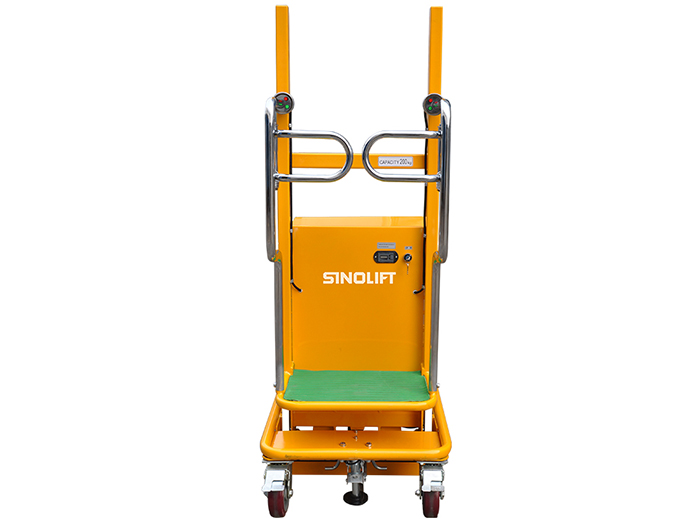

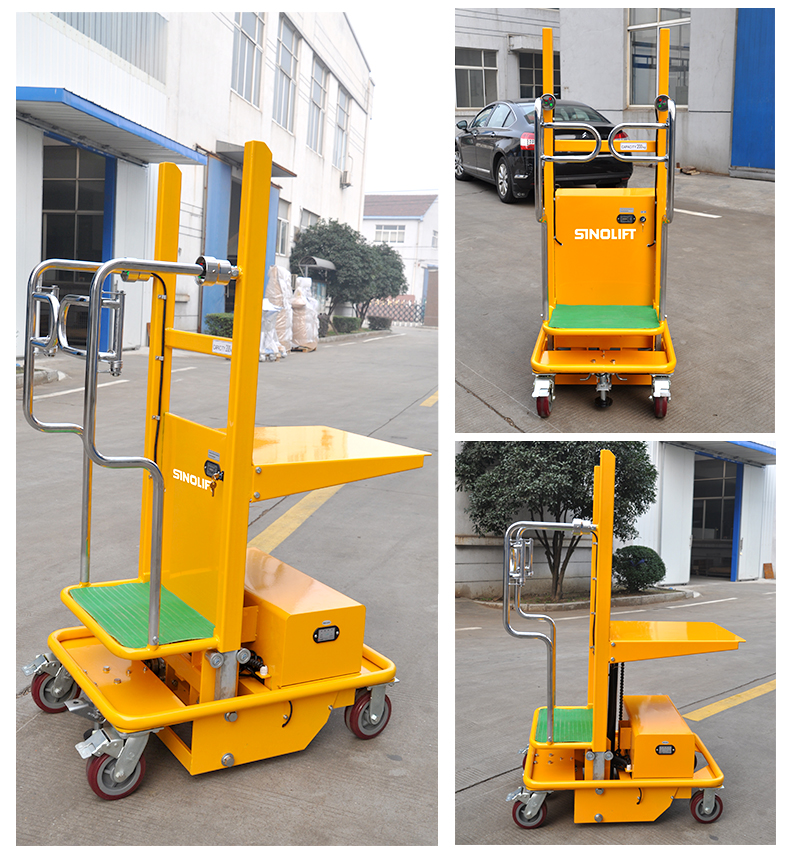

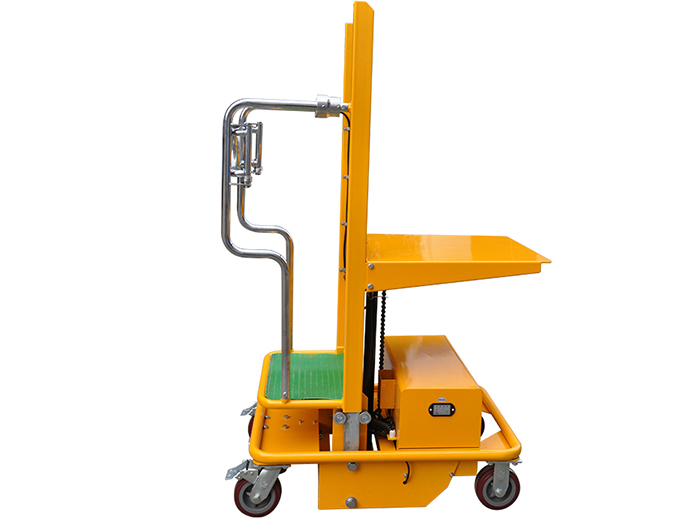

Name:WF200 WF200A Semi-Electric Order Picker
Model:WF200 WF200A
Product Introduction:The semi-electric order picker can be height controlled to access low-duty materials by controlling its height to pick specific inventory. Operators can control the height inside the platform cabin and it can be pushed manually and easily through the help of attached wheels.

The semi-electric order picker can be height controlled to access low-duty materials by controlling its height to pick specific inventory. Operators can control the height inside the platform cabin and it can be pushed manually and easily through the help of attached wheels.

·Dramatically reduces strain, increases safety and productivity in those repeat picking applications .

·Hand pushed unit which is easy to maneuver

·Quick Battery operated lift to desired height

·Two parking brakes ensure safety rest

·Supplied with battery and automatic charger

·With added safety features: Mandatory two handed controls safety bar etc.

·Conforms to EN280

Model

WF200

WF200A

Type

Single Mast

Rated Capacity

kg

200

200

Min. Height of Platform

mm

670

850

Max. Height of Platform

mm

1500

2030

Stand platform height

mm

270~970

320~1500

Operating Height

mm

3000

3600

Platform Size

mm

600*550

600*550

Pump Station Power

W

DC 800

DC 800

Battery

V/Ah

12/60

12/60

Lifting time

s

6~8

6~8

Lowering time

s

10~13

10~13

Outline Size

mm

1040*630*1050

1040*630*1580

Net Weight

kg

151

170
