Name:OPC Electric Order Picker for Your Warehouse
Model:OPC
Product Introduction:A warehouse picker from SINOLIFT increases efficiency to help your staff reach their order quota for the day. Unlike a bulky order picker forklift, a drivable stock picker can fit down even a narrow aisle at your warehouse to access product inventory in compact spaces.

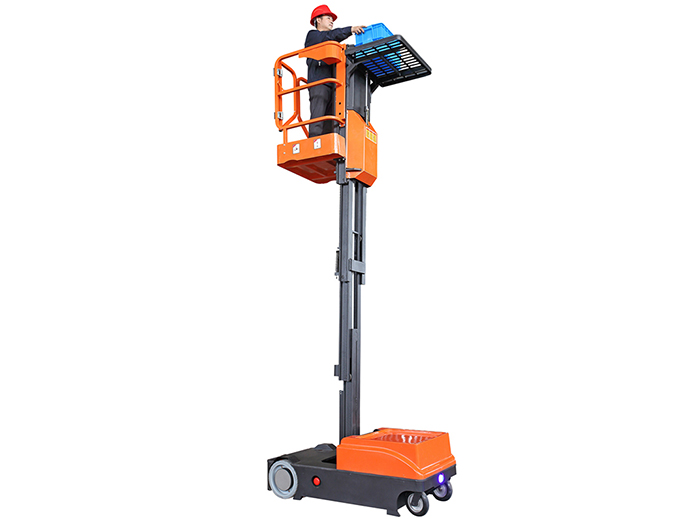

The SINOLIFT OPC electric order picker with powered drive is ideal for stocking and stock picking applications where the product is too heavy or bulky to be handled safely on a rolling ladder. Perfect for use on warehouse and shop floors. This powered order picker features both a personnel deck and a merchandise platform, enabling the stock picker to raise a worker and products at the same time. Stock picker is 24v powered drive and powered lift and can lift up to 150kg on the platform and 113kg on the carrying deck. The maximum lift height is 3,000mm, giving a working height of up to 5,000mm. This SINOLIFT order picker features saloon doors for easy access. Order picker has two speeds, activating Turtle Drive Mode when the lift is in the raised position. The SINOLIFT OPC electric stock picker meets or exceeds ANSI safety standards.

  • Increases reach and safety at your warehouse, enabling you to find materials efficiently
  • Helps a worker pick an order in less time for higher productivity
  • Can be driven from full platform height using innovative controls
  • Features maintenance-free components and automatic battery charging
  • Models available with varying platform height for low and high-level inventory loads
  • Available to buy new or used with rental options also available from distributors nationwide

Model

OPC03M

OPC04M

Height of platform

mm

3000

4000

Height of operation

mm

5000

6000

Height of rest

mm

1460

1780

Platform entrance height

mm

360

560

Platform size (WxL)

mm

500×730

500 ×730

Vehicle length (without bumpers)

mm

1480

1480

Chassis width (without bumpers)

mm

750

750

Gross vehicle weight

kg

790

930

platform

kg

150

150

Carrying deck

kg

113

113

Material tray

kg

113

113

Reduction of platform

km/h

4

4

Platform promotion

km/h

0.8

0.8

Radius of turn

mm

230

230

Ability of climbing

%

25

25

Maximum ground clearance

mm

50

50

Ground clearance [pothole protection]

mm

15

15

The battery

V/Ah

2×12/108

2×12/108

charger

V/A

24/15

24/15

Drive system

305x100

305x100
