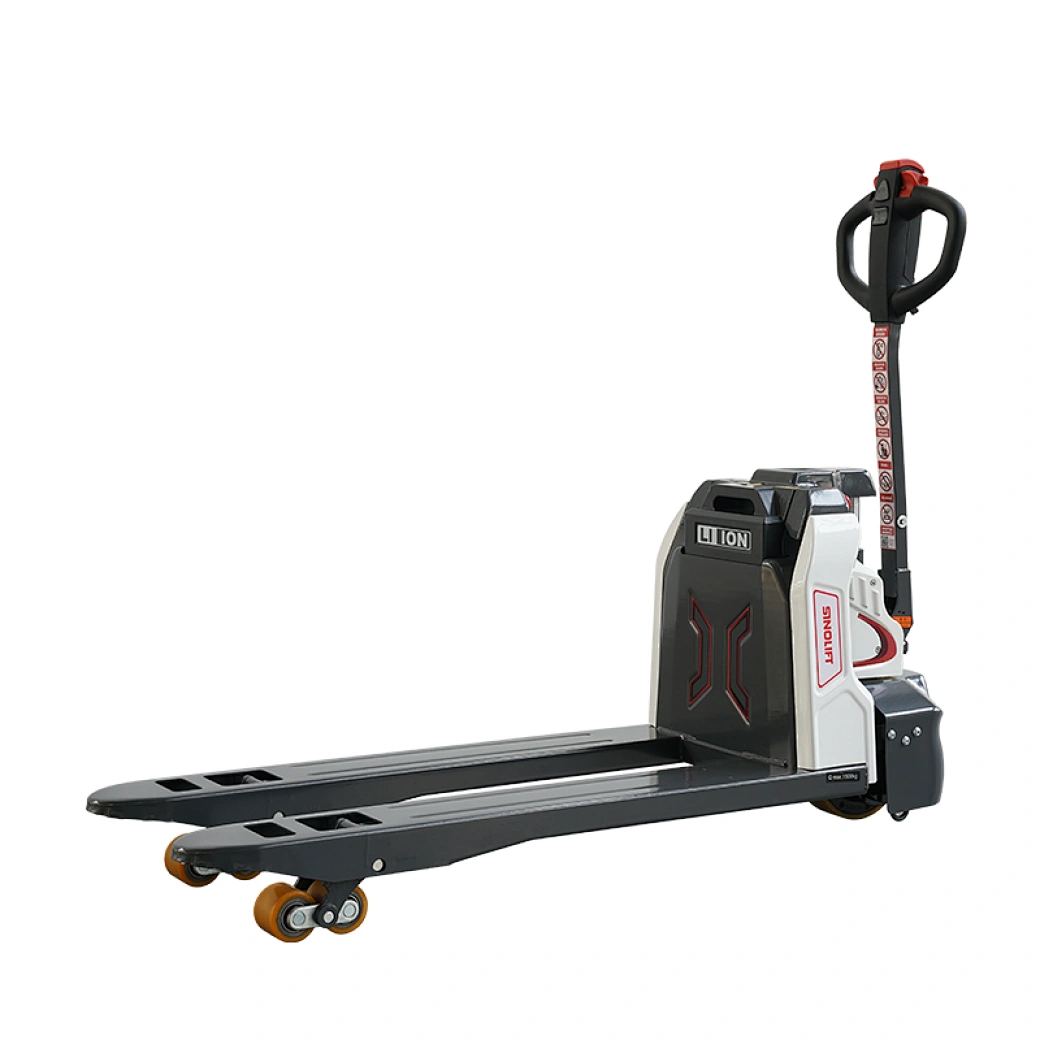

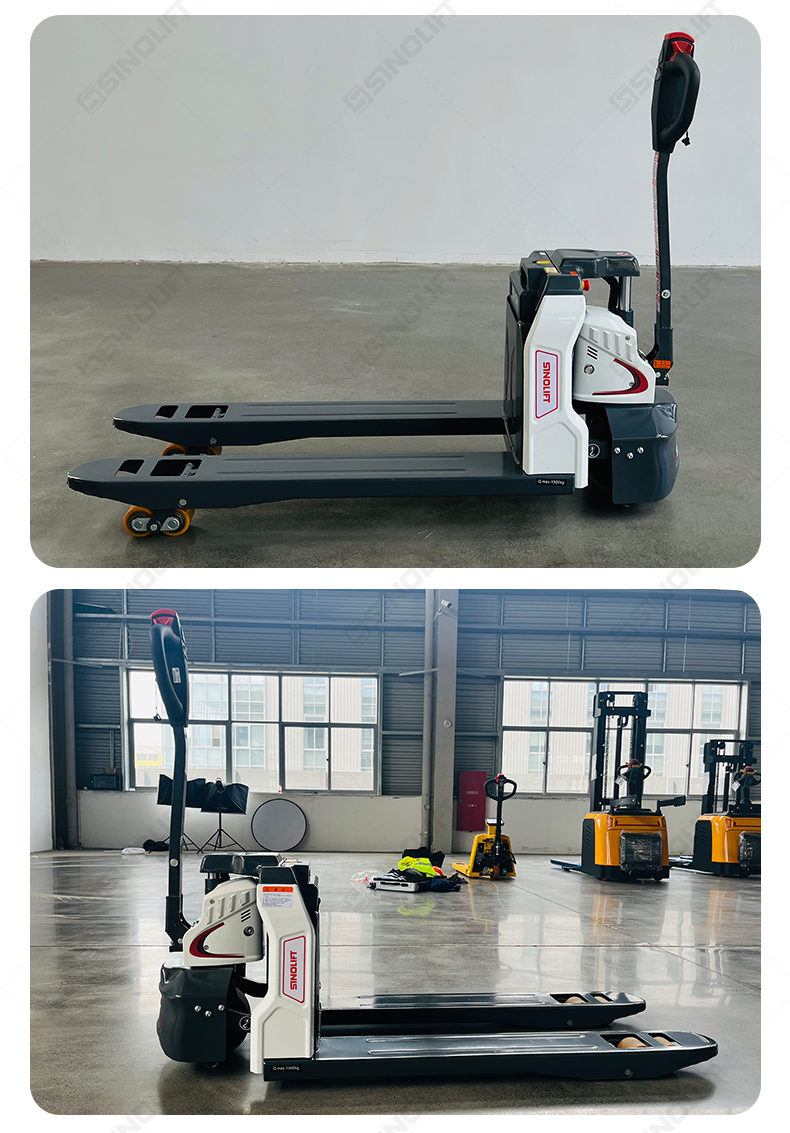

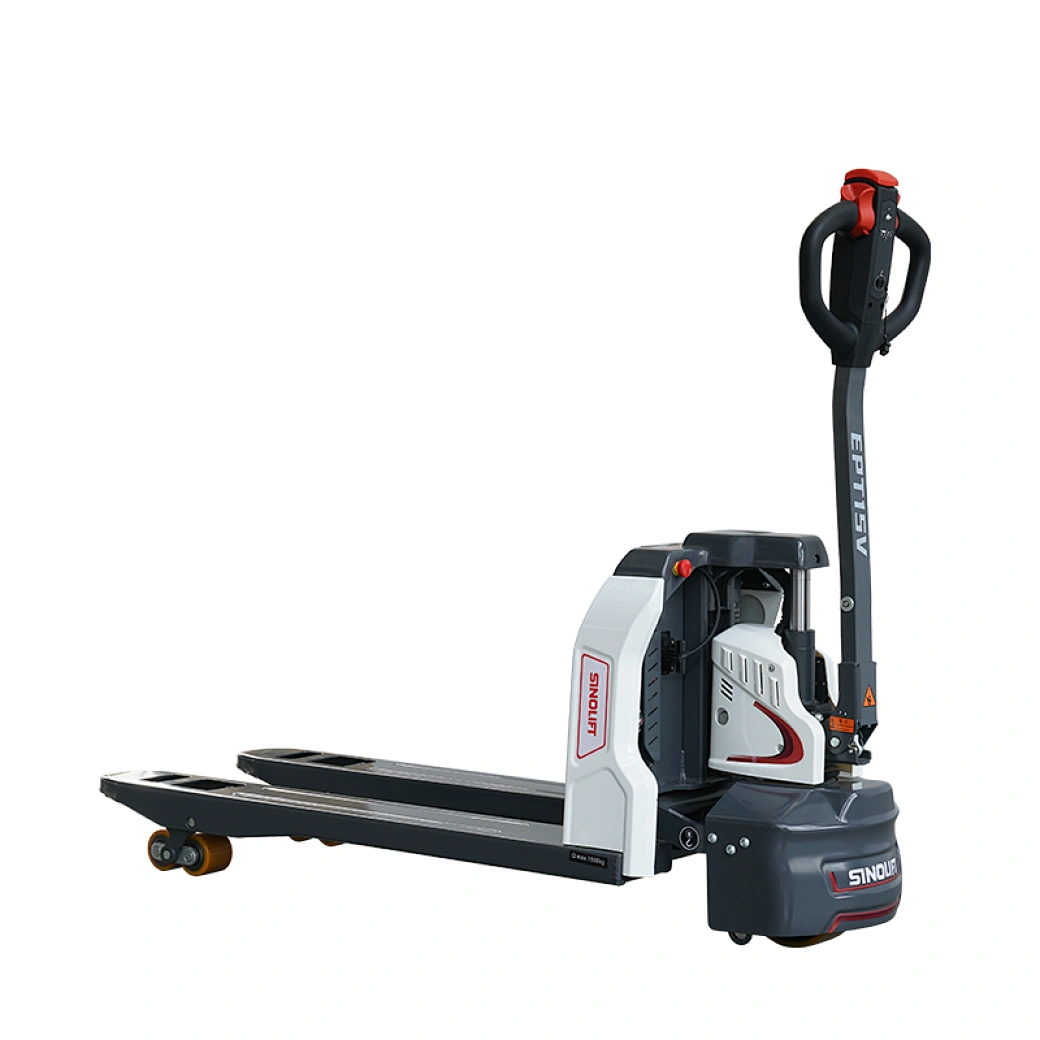

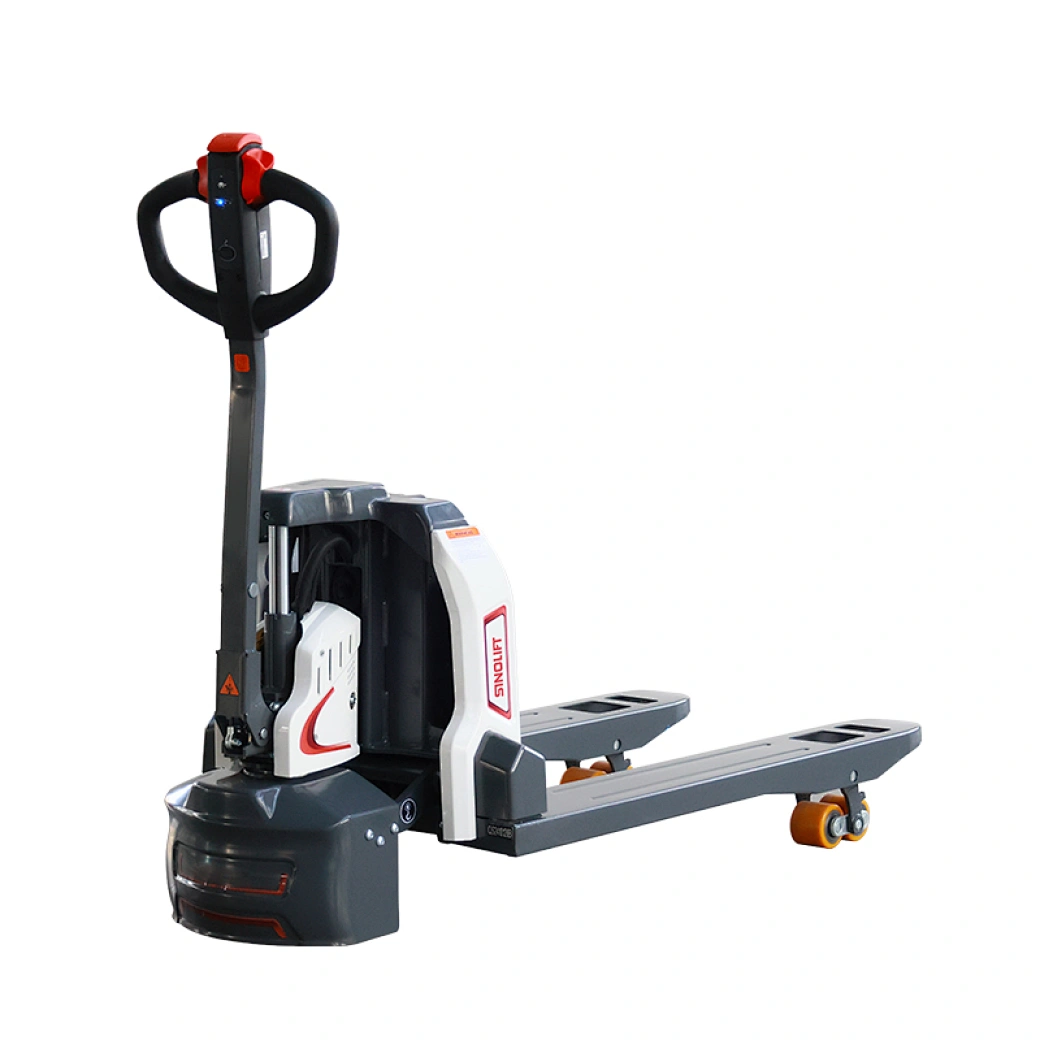

Name:EPT15V Heavy-Duty Electric Pallet Truck
Model:EPT15V
Product Introduction:The EPT15V Heavy-Duty Electric Pallet Truck is built for tough, high-demand environments, combining rugged design with cutting-edge technology to provide superior performance. Featuring military-grade reinforced forks, an easy quick battery change system, and advanced climbing capabilities, this pallet truck is ideal for both industrial and logistics applications. Designed with durability and ease of use in mind, the EPT15V ensures smooth operation, even in challenging environments.

Product Name

EPT15V Heavy-Duty Electric Pallet Truck


Product Description:

The EPT15V Heavy-Duty Electric Pallet Truck is built for tough, high-demand environments, combining rugged design with cutting-edge technology to provide superior performance. Featuring military-grade reinforced forks, an easy quick battery change system, and advanced climbing capabilities, this pallet truck is ideal for both industrial and logistics applications. Designed with durability and ease of use in mind, the EPT15V ensures smooth operation, even in challenging environments.


Highlights:

  1. Heavy-Duty Construction: Reinforced steel for enhanced load capacity and durability.
  2. Military-Grade Forks: Pressure-resistant and designed for heavy-duty use.
  3. Quick Battery Swap: 3-second battery change for uninterrupted work.
  4. Long-Lasting Power: 45V15Ah lithium iron phosphate battery charges in just 2-3 hours.
  5. Maintenance-Free Battery: Requires minimal upkeep, providing long-lasting efficiency.
  6. Climbing Performance: 6% gradeability when fully loaded, ensuring smooth operation on loading platforms and ramps.
  7. Ergonomic Control: Multi-angle adjustable handle with vertical travel button for precise control and smooth return.
  8. High-Power Motor: Delivers strong climbing performance without rollback.
  9. Durable Wheels: Crack-resistant wheel brackets and wear-resistant casters for long-lasting reliability.
  10. Floor-Friendly: Wear-resistant, noise-reducing, and shock-absorbing wheels, perfect for marble or painted floors.
Parameter Unit EPT15V EPT20V
Model EPT15V EPT20V
Drive Type Electric
Operation Mode Walk-behind
Rated Load Capacity kg 1500 2000
Load Center mm 600
Front Overhang mm 950
Wheelbase mm 1270
Self-weight (with battery) kg 142 145
Drive Wheel Size mm Mechanical Steering
Load Wheel Size mm 180×70
Wheel Quantity (Front/Rear, X=Drive) - 1X/4
Wheel Track (Load end) mm 390/525
Lifting Height mm 195
Handle Min/Max Height mm Mechanical Steering
Fork Lowest Height mm 85
Overall Length mm 1620
Underbody Length mm 470
Overall Width mm 550/685
Fork Dimensions mm 50/160/1150
Fork Outside Width mm 550/685
Ground Clearance at Wheelbase Center mm 35
Aisle Width (1000×1200 pallet) mm 1820
Aisle Width (800×1200 pallet) mm 1870
Turning Radius mm 1380
Travel Speed (Loaded/Unloaded) km/h 4.2/4.5
Max Gradeability (Loaded/Unloaded) % 6/10
Drive Motor Power kW 0.75 0.9
Lift Motor Power kW 0.5 0.5
Battery Voltage/Capacity V/Ah 24/20 48/15
Battery Weight (±5%) kg 5.5
Noise Level dB(A) ≤70
Steering Type Mechanical Steering
